(Plasmid #31596)


Item Catalog # Description Quantity Price (USD)
Plasmid 31596 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
    Calos Lab
  • Vector type
    Mammalian Expression, Luciferase

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
    alpha-1 antitrypsin promoter with an apolipoprotein enhancer
  • Species
    H. sapiens (human)

Cloning Information

Resource Information

Depositor Comments

As described in the methods:

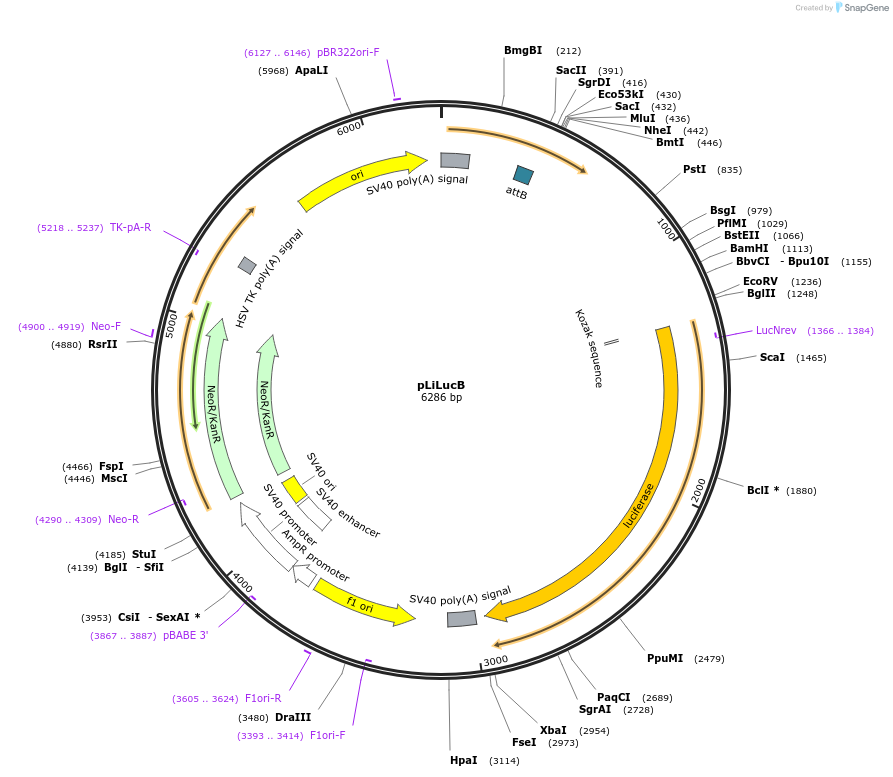

pLiLucB is a liver-specific, luciferase-expressing attB donor plasmid that was constructed by digesting pNBL2 with XhoI to remove the CMV promoter and digesting pVFB with EcoRI to obtain the human alpha-1 antitrypsin promoter with an apolipoprotein enhancer. The ends of both fragments were made blunt by filling in with Klenow polymerase, and the pNBL2 backbone was treated with phosphatase. The construct was ligated using T4 ligase and checked by XcmI digestion and sequencing of the promoter region.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLiLucB was a gift from Michele Calos (Addgene plasmid # 31596 ; ; RRID:Addgene_31596)
  • For your References section:

    Impact of hydrodynamic injection and phiC31 integrase on tumor latency in a mouse model of MYC-induced hepatocellular carcinoma. Woodard LE, Keravala A, Jung WE, Wapinski OL, Yang Q, Felsher DW, Calos MP. PLoS One. 2010 . 5(6):e11367. 10.1371/journal.pone.0011367 PubMed 20614008
