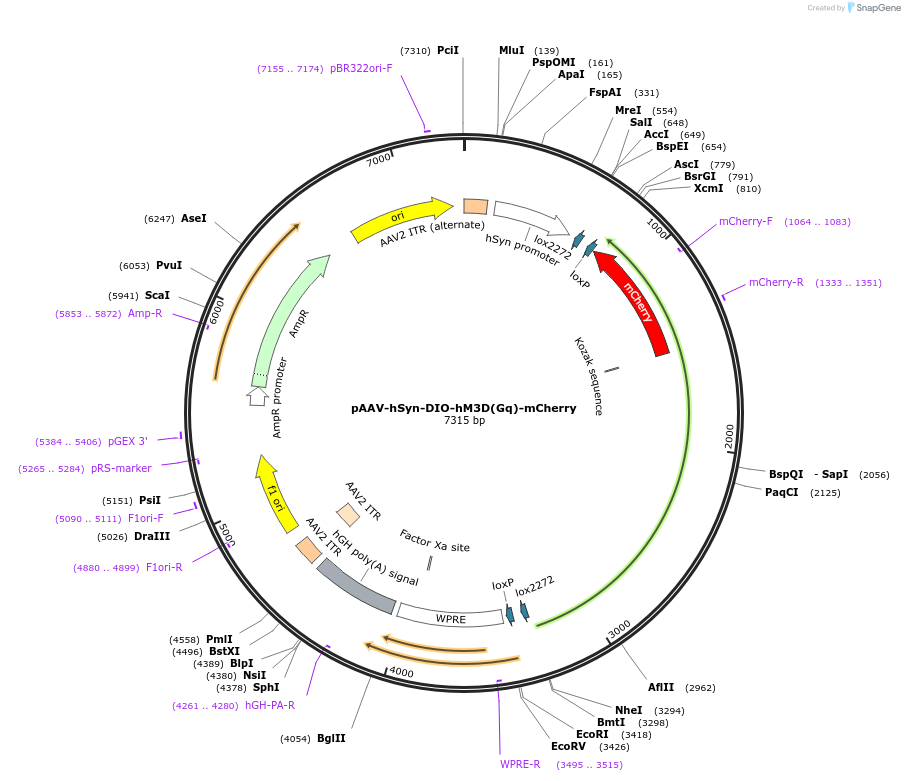

pAAV-hSyn-DIO-hM3D(Gq)-mCherry
(Plasmid #44361)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 44361 Plasmid sent as bacteria in agar stab 1 $65
AAV2 44361-AAV2 Virus (100 µL at titer ≥ 4×10¹² vg/mL)
and Plasmid. More Information
$380
AAV5 44361-AAV5 Virus (100 µL at titer ≥ 3×10¹² vg/mL)
and Plasmid. More Information
$380
AAV8 44361-AAV8 Virus (100 µL at titer ≥ 4×10¹² vg/mL)
and Plasmid. More Information
$380
AAV Retrograde 44361-AAVrg Virus (100 µL at titer ≥ 7×10¹² vg/mL)
and Plasmid. More Information
$380
AAV PHP.eB 44361-PHPeB Virus (100 µL at titer ≥ 1×10¹³ vg/mL)
and Plasmid. More Information
$380

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 4824
  • Total vector size (bp) 7326
  • Vector type
    AAV ; Adeno Associated Viral Vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    hM3D(Gq)-mCherry
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2502
  • Promoter human Synapsin 1
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Asc I (not destroyed)
  • 3′ cloning site Nhe I (not destroyed)
  • 5′ sequencing primer tcgtgtcgtgcctgagagcg
  • 3′ sequencing primer GCATTAAAGCAGCGTATCCACATAGC
  • (Common Sequencing Primers)

Resource Information

Information for AAV2 (Catalog # 44361-AAV2) ( Back to top )

Purpose

Ready-to-use AAV2 particles produced from pAAV-hSyn-DIO-hM3D(Gq)-mCherry (#44361). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM3D(Gq)-mCherry plasmid DNA.

CNO-induced neuronal burst firing. Synapsin-driven with mCherry reporter. Cre-dependent. mCherry reporter. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 4×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV2 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV2
  • Purification CsCl gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
    • Transgene
      hM3D For: CCGGTGTGATGATCGGTCTGGC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
    • DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      mCherry For: TCCGAGCGGATGTACCCCGAG
    • Non-DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
  • Next-generation sequencing of viral genome: Next-generation sequencing was performed on viral genomes that were isolated from the final viral preparation. Sequencing results were analyzed to confirm the identity and integrity of the viral genome and the absence of unexpected DNA contaminants.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV5 (Catalog # 44361-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-hSyn-DIO-hM3D(Gq)-mCherry (#44361). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM3D(Gq)-mCherry plasmid DNA.

CNO-induced neuronal burst firing. Synapsin-driven with mCherry reporter. Cre-dependent. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 3×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
    • Transgene
      hM3D For: CCGGTGTGATGATCGGTCTGGC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
    • DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      mCherry For: TCCGAGCGGATGTACCCCGAG
    • Non-DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
  • Next-generation sequencing of viral genome: Next-generation sequencing was performed on viral genomes that were isolated from the final viral preparation. Sequencing results were analyzed to confirm the identity and integrity of the viral genome and the absence of unexpected DNA contaminants.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV8 (Catalog # 44361-AAV8) ( Back to top )

Purpose

Ready-to-use AAV8 particles produced from pAAV-hSyn-DIO-hM3D(Gq)-mCherry (#44361). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM3D(Gq)-mCherry plasmid DNA.

CNO-induced neuronal burst firing. Synapsin-driven with mCherry reporter. Cre-dependent. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 4×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV8 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV8
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
    • Transgene
      hM3D For: CCGGTGTGATGATCGGTCTGGC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
    • DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      mCherry For: TCCGAGCGGATGTACCCCGAG
    • Non-DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
  • Next-generation sequencing of viral genome: Next-generation sequencing was performed on viral genomes that were isolated from the final viral preparation. Sequencing results were analyzed to confirm the identity and integrity of the viral genome and the absence of unexpected DNA contaminants.
  • In-vivo expression: AAV8-hSyn-DIO-hM3D(Gq)-mCherry particles were injected into brain regions of a mouse expressing Cre recombinase and a wild-type mouse. Expression of hM3D(Gq)-mCherry was visualized by direct fluorescence. You can view the in-vivo expression and details here or in the image section at the top of this page.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV Retrograde (Catalog # 44361-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV-hSyn-DIO-hM3D(Gq)-mCherry (#44361). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM3D(Gq)-mCherry plasmid DNA.

CNO-induced neuronal burst firing. Synapsin-driven with mCherry reporter. Cre-dependent. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene
  • Envelope AAV retrograde cap gene
    rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Titering Method:
  • Real-time qPCR: The number of genome copies in viral preparations was measured by SYBR green real-time qPCR with primers targeting the ITR. Titer values were deduced by comparing the genomic content of the viral preparation to a standard curve of a plasmid of known concentration. Read our AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by silver staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • In-vivo expression: AAVrg-hSyn-DIO-hM3D(Gq)-mCherry particles were injected into brain regions of an RBP4-Cre mouse. mCherry expression was visualized two weeks later by direct fluorescence and exhibits retrograde transport from the injection site. You can view the in-vivo expression and details here or in the image section at the top of this page.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the DIO orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
    • Transgene
      hM3D For: CCGGTGTGATGATCGGTCTGGC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
    • DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      mCherry For: TCCGAGCGGATGTACCCCGAG
    • Non-DIO orientation
      Promoter For: CAAGCACCCAACCCCCATTCCC
      hM3D Rev: CATCGTCCACGCTCTTCTGGGC
  • Next-generation sequencing of viral genome: Next-generation sequencing was performed on viral genomes that were isolated from the final viral preparation. Sequencing results were analyzed to confirm the identity and integrity of the viral genome and the absence of unexpected DNA contaminants.

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV PHP.eB (Catalog # 44361-PHPeB) ( Back to top )

Purpose

Ready-to-use AAV PHP.eB particles produced from pAAV-hSyn-DIO-hM3D(Gq)-mCherry (#44361). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM3D(Gq)-mCherry plasmid DNA.

CNO-induced neuronal burst firing. Synapsin-driven with mCherry reporter. Cre-dependent. These AAV were produced with the PHP.eB serotype, which permits efficient transduction of the central nervous system. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, PHP.eB cap gene
    pUCmini-iCAP-PHP.eB (plasmid #103005)
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype PHPeB (plasmid #103005)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Titering Method:
  • Real-time qPCR or droplet digital PCR: The number of genome copies in viral preparations was measured by real-time qPCR or by droplet digital PCR. Titering on these preparations was performed by the University of Pennsylvania Vector Core. Read Addgene's AAV Titration by qPCR protocol here.
Notes:
  • Purity of viral preparation: Viral preparations were subjected to polyacrylamide gel electrophoresis (PAGE) followed by SYPRO Red staining and the molecular weight and relative intensity of the viral capsid proteins was analyzed. The abundance of viral capsid proteins as a fraction of total protein present in the sample was used to determine purity of the AAV preparation.
  • Confirmation of protein expression: N2a cells were transduced with 44361-PHPeB at 4.1E6 vg/cell in the absence and presence of an AAV encoding Cre. Five to six days later, mCherry expression was visualized by direct fluorescence.
  • PCR confirmation of viral genome: PCR was carried out on the viral preparation with primers that only produce amplicons in the original (non-flipped) orientation. PCR was also carried out on the viral preparation with primers targeting the transgene. The PCR products were visualized on an agarose gel for size confirmation.
    • Transgene
      M3-1 For: GCCTGTGCCGATCTGATTAT
      M3-1 Rev: CTTGAGCACGATGGAGTAGATG
    • Transgene (no amplicon expected)
      M4-2 For: TCACGTCATCATCCCACAATC
      M4-2 Rev: CTGTCTGCTTCGTCACAATCT
    • Orientation
      Syn For: CAAGCACCCAACCCCCATTCCC
      M3-1 For: GCCTGTGCCGATCTGATTAT
    • Orientation
      Syn For: CAAGCACCCAACCCCCATTCCC
      Cherry For: TCCGAGCGGATGTACCCCGAG
    • Orientation (no amplicon expected)
      Syn For: CAAGCACCCAACCCCCATTCCC
      Cherry Rev: CTTGTACAGCTCGTCCATGCCG

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Citation Information: When using the PHP.eB serotype in future publications, please acknowledge Viviana Gradinaru and Benjamin Deverman and cite Chan et al., Nat Neurosci, 20(8):1172-1179. Pubmed.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-hSyn-DIO-hM3D(Gq)-mCherry was a gift from Bryan Roth (Addgene plasmid # 44361)

    For viral preps, please replace (Addgene plasmid # 44361) in the above sentence with: (Addgene viral prep # 44361-AAV2), (Addgene viral prep # 44361-AAV5), (Addgene viral prep # 44361-AAV8), (Addgene viral prep # 44361-AAVrg), or (Addgene viral prep # 44361-PHPeB)

  • For your References section:

    Rapid, reversible activation of AgRP neurons drives feeding behavior in mice. Krashes MJ, Koda S, Ye C, Rogan SC, Adams AC, Cusher DS, Maratos-Flier E, Roth BL, Lowell BB. J Clin Invest. 2011 Apr;121(4):1424-8. doi: 10.1172/JCI46229. 10.1172/JCI46229 PubMed 21364278
