pAAV-hSyn-DIO-hM4D(Gi)-mCherry
(Plasmid #44362)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 44362 Standard format: Plasmid sent in bacteria as agar stab 1 $65
AAV2 44362-AAV2 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. More Information
$380
AAV5 44362-AAV5 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. More Information
$380
AAV8 44362-AAV8 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. More Information
$380
AAV9 44362-AAV9 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. More Information
$380
AAV Retrograde 44362-AAVrg Virus (100µL at titer ≥ 8×10¹² vg/mL) and Plasmid. More Information
$380
AAV PHP.eB 44362-PHPeB Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. More Information
$380

This material is available to academics and nonprofits only.

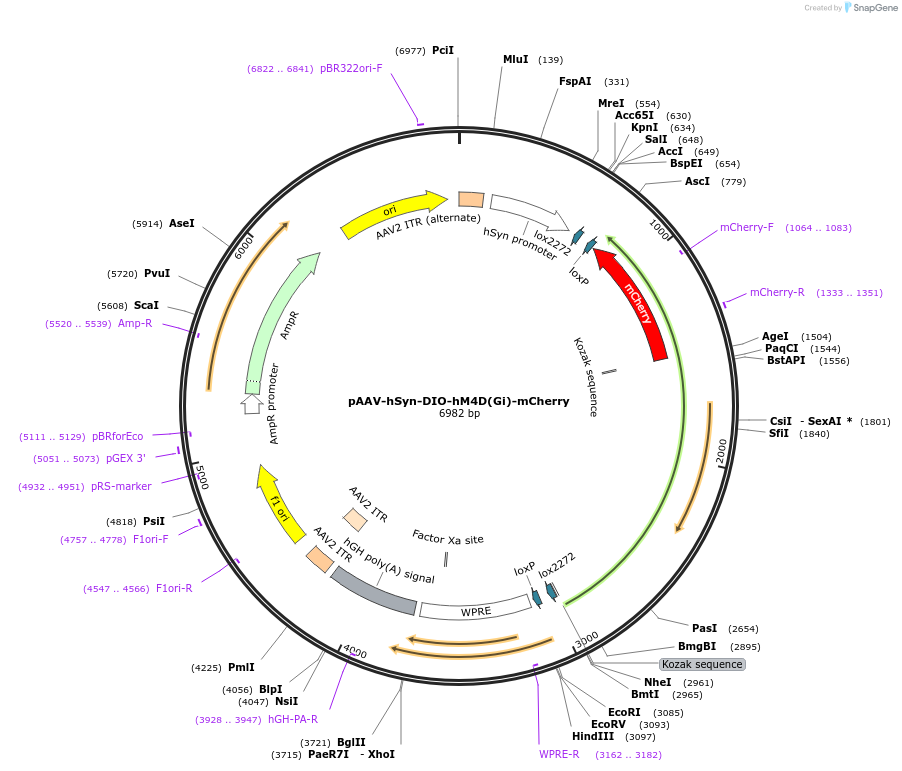

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 4818
  • Total vector size (bp) 6993
  • Vector type
    AAV ; Adeno Associated Viral Vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    hM4D(Gi)-mCherry
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2175
  • Promoter human Synapsin 1
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Asc I (not destroyed)
  • 3′ cloning site Nhe I (not destroyed)
  • 5′ sequencing primer tcgtgtcgtgcctgagagcg
  • 3′ sequencing primer GCATTAAAGCAGCGTATCCACATAGC
  • (Common Sequencing Primers)

Resource Information

Information for AAV2 (Catalog # 44362-AAV2) ( Back to top )

Purpose

Ready-to-use AAV2 particles produced from pAAV-hSyn-DIO-hM4D(Gi)-mCherry (#44362). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM4D(Gi)-mCherry plasmid DNA.

hSyn-driven, Cre-dependent, hM4D(Gi) receptor with an mCherry reporter for CNO-induced neuronal inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV2 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV2
  • Purification CsCl gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV5 (Catalog # 44362-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-hSyn-DIO-hM4D(Gi)-mCherry (#44362). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM4D(Gi)-mCherry plasmid DNA.

Syn-driven, Cre-dependent hM4D(Gi) receptor with an mCherry reporter for CNO-induced neuronal silencing. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV8 (Catalog # 44362-AAV8) ( Back to top )

Purpose

Ready-to-use AAV8 particles produced from pAAV-hSyn-DIO-hM4D(Gi)-mCherry (#44362). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM4D(Gi)-mCherry plasmid DNA.

Syn-driven, Cre-dependent, hM4D(Gi) receptor with an mCherry reporter for CNO-induced neuronal inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV8 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV8
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV9 (Catalog # 44362-AAV9) ( Back to top )

Purpose

Ready-to-use AAV9 particles produced from pAAV-hSyn-DIO-hM4D(Gi)-mCherry (#44362). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM4D(Gi)-mCherry plasmid DNA.

Syn-driven, Cre-dependent, hM3D(Gq) receptor with an mCherry reporter for CNO-induced neuronal activation. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV9 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV9
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV Retrograde (Catalog # 44362-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV-hSyn-DIO-hM4D(Gi)-mCherry (#44362). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM4D(Gi)-mCherry plasmid DNA.

Syn-driven, Cre-dependent, hM4D(Gi) receptor with an mCherry reporter for CNO-induced neuronal inhibition. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 8×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV PHP.eB (Catalog # 44362-PHPeB) ( Back to top )

Purpose

Ready-to-use AAV PHP.eB particles produced from pAAV-hSyn-DIO-hM4D(Gi)-mCherry (#44362). In addition to the viral particles, you will also receive purified pAAV-hSyn-DIO-hM4D(Gi)-mCherry plasmid DNA.

Syn-driven, Cre-dependent, hM4D(Gi) receptor with an mCherry reporter for CNO-induced neuronal inhibition. These AAV were produced with the PHP.eB serotype, which permits efficient transduction of the central nervous system. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, PHP.eB cap gene
    pUCmini-iCAP-PHP.eB (plasmid #103005)
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype PHPeB (plasmid #103005)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Citation Information: When using the PHP.eB serotype in future publications, please acknowledge Viviana Gradinaru and Benjamin Deverman and cite Chan et al., Nat Neurosci, 20(8):1172-1179. Pubmed.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-hSyn-DIO-hM4D(Gi)-mCherry was a gift from Bryan Roth (Addgene plasmid # 44362)

    For viral preps, please replace (Addgene plasmid # 44362) in the above sentence with: (Addgene viral prep # 44362-AAV2), (Addgene viral prep # 44362-AAV5), (Addgene viral prep # 44362-AAV8), (Addgene viral prep # 44362-AAV9), (Addgene viral prep # 44362-AAVrg), or (Addgene viral prep # 44362-PHPeB)

  • For your References section:

    Rapid, reversible activation of AgRP neurons drives feeding behavior in mice. Krashes MJ, Koda S, Ye C, Rogan SC, Adams AC, Cusher DS, Maratos-Flier E, Roth BL, Lowell BB. J Clin Invest. 2011 Apr;121(4):1424-8. doi: 10.1172/JCI46229. 10.1172/JCI46229 PubMed 21364278
