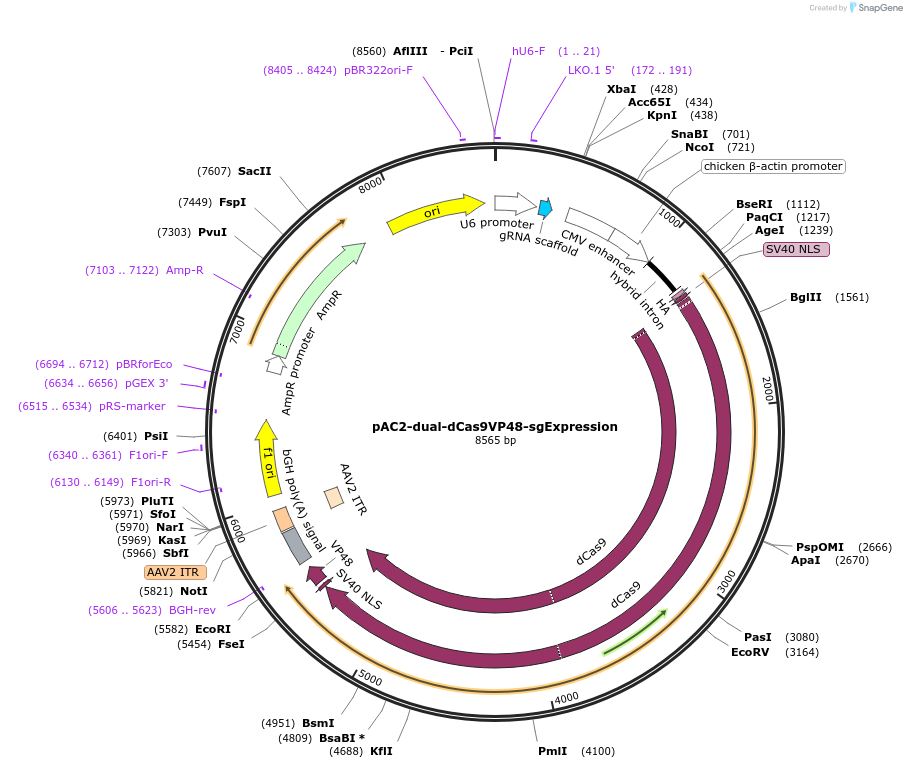

pAC2-dual-dCas9VP48-sgExpression
(Plasmid #48236)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 48236 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pX335 (Addgene #42335)
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    dCas9VP48
  • Species
    H. sapiens (human), Synthetic
  • Mutation
    D10A H840A (catalytically inactive)
  • Tags / Fusion Proteins
    • HA-tag (N terminal on insert)
    • VP48 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer acctctccgcctcgccccgc
  • 3′ sequencing primer BGHPolyARSeq:ttattaggaaaggacagtgg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Clone sgRNA spacer into BbsI site. Sequence using LKO5' primer: GACTATCATATGCTTACCGT

For more information including protocols and
updates, please go to http://www.crispr-on.org

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAC2-dual-dCas9VP48-sgExpression was a gift from Rudolf Jaenisch (Addgene plasmid # 48236 ; http://n2t.net/addgene:48236 ; RRID:Addgene_48236)
  • For your References section:

    Multiplexed activation of endogenous genes by CRISPR-on, an RNA-guided transcriptional activator system. Cheng AW, Wang H, Yang H, Shi L, Katz Y, Theunissen TW, Rangarajan S, Shivalila CS, Dadon DB, Jaenisch R. Cell Res. 2013 Aug 27. doi: 10.1038/cr.2013.122. 10.1038/cr.2013.122 PubMed 23979020
