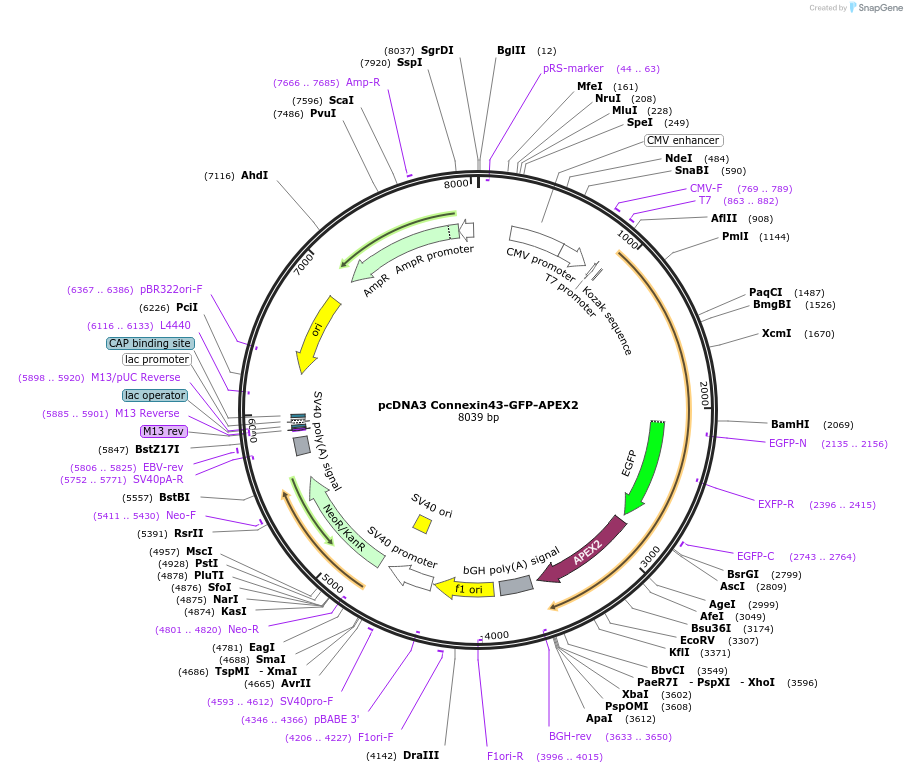

pcDNA3 Connexin43-GFP-APEX2
(Plasmid #49385)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 49385 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5366
  • Total vector size (bp) 8039
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Connexin43 - EGFP - APEX2
  • Species
    soybean
  • Insert Size (bp)
    2673
  • Mutation
    K14D, W41F, E112K, A134P on soybean APX; improved for proteomics and EM applications
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer BGHrev
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3 Connexin43-GFP-APEX2 was a gift from Alice Ting (Addgene plasmid # 49385 ; http://n2t.net/addgene:49385 ; RRID:Addgene_49385)
  • For your References section:

    Directed evolution of APEX2 for electron microscopy and proximity labeling. Lam SS, Martell JD, Kamer KJ, Deerinck TJ, Ellisman MH, Mootha VK, Ting AY. Nat Methods. 2014 Nov 24. doi: 10.1038/nmeth.3179. 10.1038/nmeth.3179 PubMed 25419960
