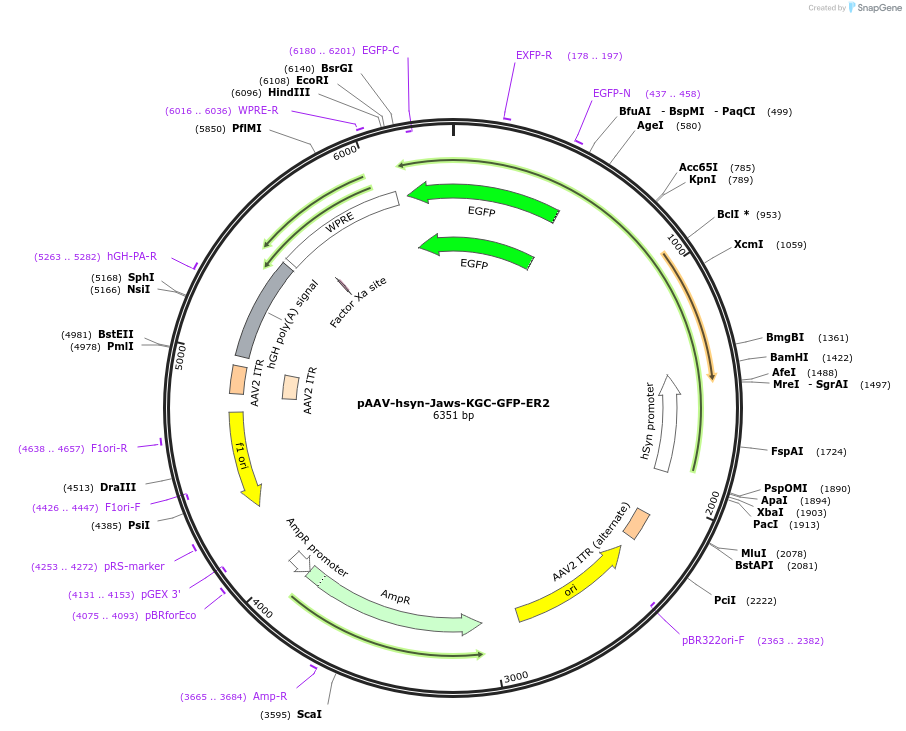

pAAV-hsyn-Jaws-KGC-GFP-ER2
(Plasmid #65014)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 65014 Standard format: Plasmid sent in bacteria as agar stab 1 $65
AAV5 65014-AAV5 Virus (100 µL at titer ≥ ≥ 7×10¹² vg/mL) and Plasmid. More Information
$380
AAV8 65014-AAV8 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. More Information
$380
AAV Retrograde 65014-AAVrg Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. More Information
$380

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 4695
  • Total vector size (bp) 6351
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Stbl3
  • Growth instructions
    Please note that this backbone is highly recombination prone and should be amplified in a rec- strain like Sure2 or Stbl3, and grown at 30 C using carbenicillin rather than ampicillin.
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Jaws-KGC-GFP-ER2
  • Alt name
    Jaws
  • Species
    Haloarcula salinarum (strain Shark)
  • Insert Size (bp)
    1650
  • Mutation
    K200R W214F
  • GenBank ID
    KM000926.1
  • Promoter human synapsin
  • Tags / Fusion Proteins
    • KGC (C terminal on insert)
    • GFP (C terminal on insert)
    • ER2 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer GCG AGG CGC GAG ATA G
  • 3′ sequencing primer CAA GGA GGA GAA AAT GAA AGC C
  • (Common Sequencing Primers)

Resource Information

Information for AAV5 (Catalog # 65014-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-hsyn-Jaws-KGC-GFP-ER2 (#65014). In addition to the viral particles, you will also receive purified pAAV-hsyn-Jaws-KGC-GFP-ER2 plasmid DNA.

hSyn-driven Jaws-GFP expression for optogenetic neural inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene GFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV8 (Catalog # 65014-AAV8) ( Back to top )

Purpose

Ready-to-use AAV8 particles produced from pAAV-hsyn-Jaws-KGC-GFP-ER2 (#65014). In addition to the viral particles, you will also receive purified pAAV-hsyn-Jaws-KGC-GFP-ER2 plasmid DNA.

hSyn-driven Jaws-GFP expression for optogenetic neural inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV8 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV8
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene GFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV Retrograde (Catalog # 65014-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV-hsyn-Jaws-KGC-GFP-ER2 (#65014). In addition to the viral particles, you will also receive purified pAAV-hsyn-Jaws-KGC-GFP-ER2 plasmid DNA.

These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-hsyn-Jaws-KGC-GFP-ER2 was a gift from Edward Boyden (Addgene plasmid # 65014)

    For viral preps, please replace (Addgene plasmid # 65014) in the above sentence with: (Addgene viral prep # 65014-AAV5), (Addgene viral prep # 65014-AAV8), or (Addgene viral prep # 65014-AAVrg)

  • For your References section:

    Noninvasive optical inhibition with a red-shifted microbial rhodopsin. Chuong AS, Miri ML, Busskamp V, Matthews GA, Acker LC, Sorensen AT, Young A, Klapoetke NC, Henninger MA, Kodandaramaiah SB, Ogawa M, Ramanlal SB, Bandler RC, Allen BD, Forest CR, Chow BY, Han X, Lin Y, Tye KM, Roska B, Cardin JA, Boyden ES. Nat Neurosci. 2014 Aug;17(8):1123-9. doi: 10.1038/nn.3752. Epub 2014 Jul 6. 10.1038/nn.3752 PubMed 24997763
