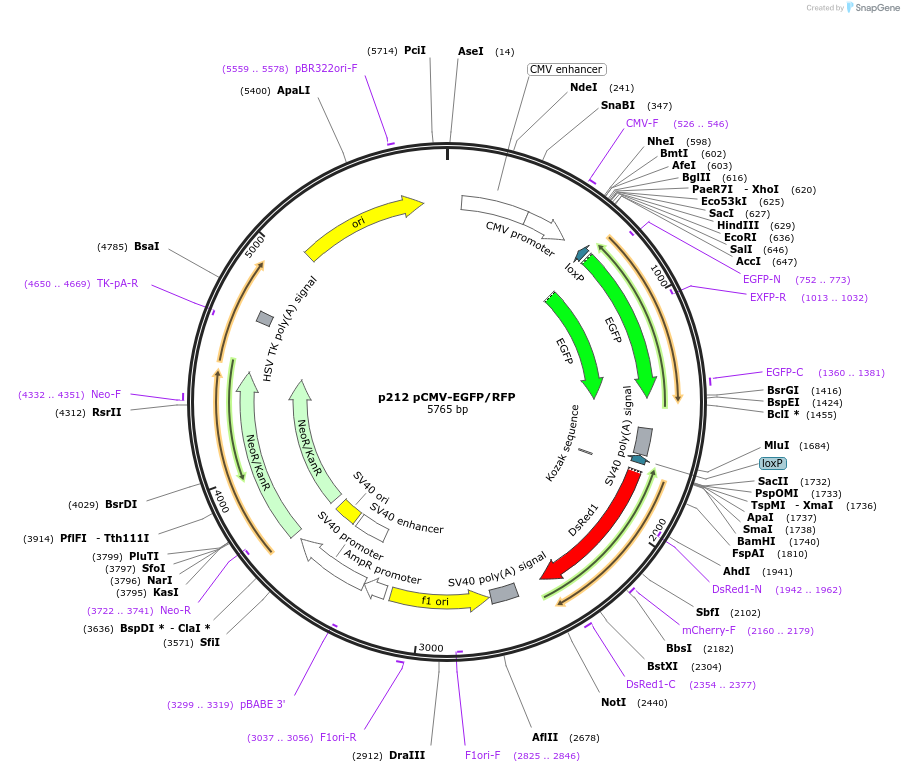

p212 pCMV-EGFP/RFP
(Plasmid #8389)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 8389 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pDsRed1-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression, Cre/Lox
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    floxed EGFP
  • Alt name
    loxI EGFP loxII
  • Insert Size (bp)
    800

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

EGFP-RFP* gene switch plasmid. Floxed EGFP gene switch cassette (KpnI fragment
from plasmid "p144").

*NOTE: The "RFP" in this plasmid is actually DsRed.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p212 pCMV-EGFP/RFP was a gift from Jeffrey Green (Addgene plasmid # 8389 ; http://n2t.net/addgene:8389 ; RRID:Addgene_8389)
  • For your References section:

    A single vector containing modified cre recombinase and LOX recombination sequences for inducible tissue-specific amplification of gene expression. Kaczmarczyk SJ, Green JE. Nucleic Acids Res 2001 Jun 15;29(12):E56-6. 10.1093/nar/29.12.e56 PubMed 11410679
