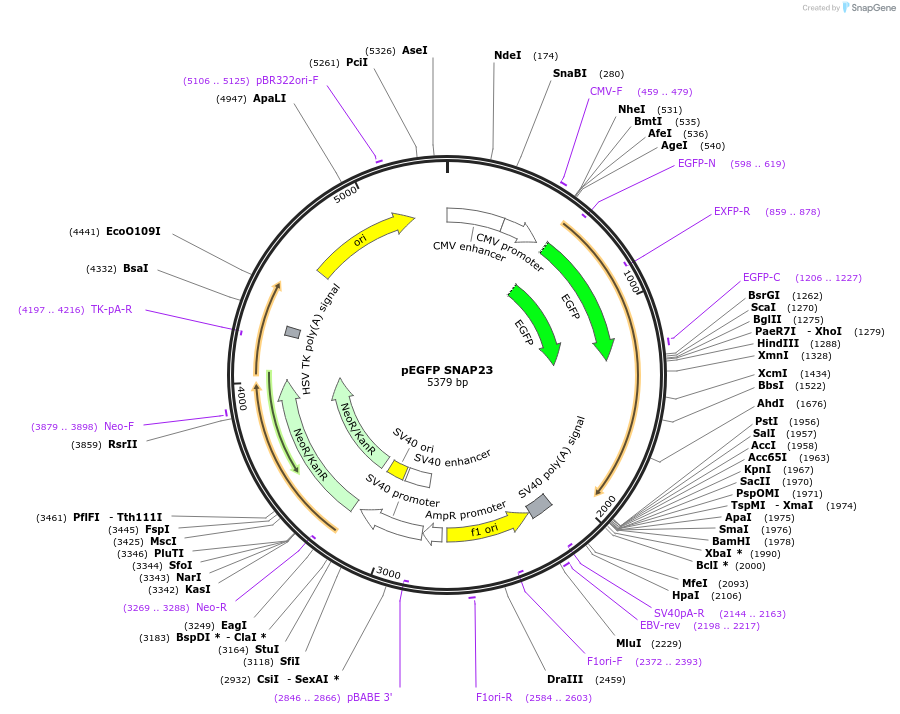

pEGFP SNAP23
(Plasmid #101914)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 101914 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP C3
  • Backbone manufacturer
    CLONETECH
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5336
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    SNAP 23
  • Alt name
    synaptosome associated protein 23
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    636
  • GenBank ID
    8773
  • Entrez Gene
    SNAP23 (a.k.a. HsT17016, SNAP-23, SNAP23A, SNAP23B)
  • Promoter CMV
  • Tag / Fusion Protein
    • GFP (N terminal on backbone)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFP SNAP23 was a gift from Thierry Galli (Addgene plasmid # 101914 ; http://n2t.net/addgene:101914 ; RRID:Addgene_101914)
  • For your References section:

    The Q-soluble N-Ethylmaleimide-sensitive Factor Attachment Protein Receptor (Q-SNARE) SNAP-47 Regulates Trafficking of Selected Vesicle-associated Membrane Proteins (VAMPs). Kuster A, Nola S, Dingli F, Vacca B, Gauchy C, Beaujouan JC, Nunez M, Moncion T, Loew D, Formstecher E, Galli T, Proux-Gillardeaux V. J Biol Chem. 2015 Nov 20;290(47):28056-69. doi: 10.1074/jbc.M115.666362. Epub 2015 Sep 10. 10.1074/jbc.M115.666362 PubMed 26359495
