(Plasmid #102461)


Item Catalog # Description Quantity Price (USD)
Plasmid 102461 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size w/o insert (bp) 2525
  • Total vector size (bp) 4793
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
    β2 adrenergic receptor/T4 lysozyme chimera
  • Alt name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Promoter OR2-OR1-Pr
  • Tags / Fusion Proteins
    • sfGFP (C terminal on insert)
    • His tag (C terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer AAAACCGAATTTTGCTGGGTG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

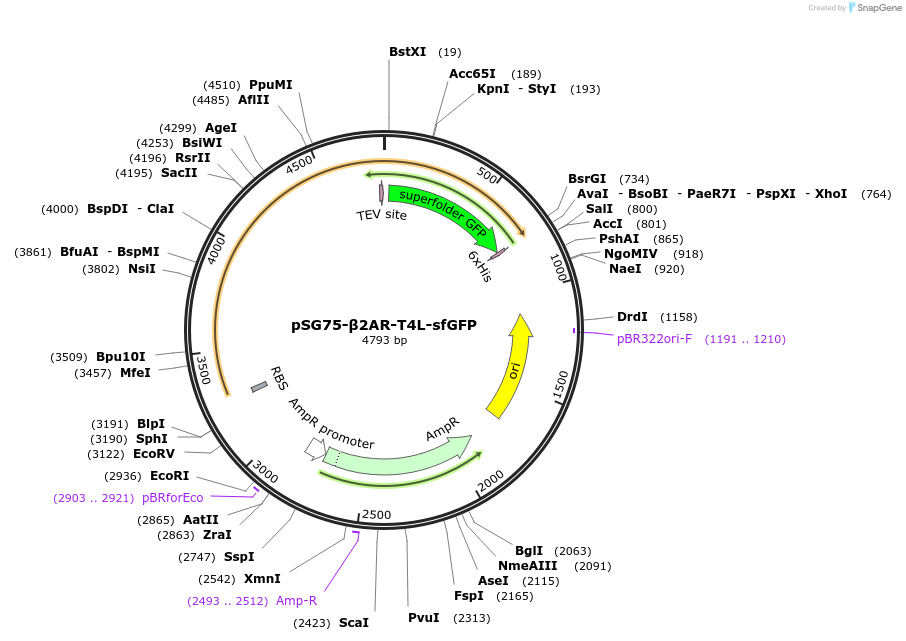

    pSG75-β2AR-T4L-sfGFP was a gift from Richard Murray (Addgene plasmid # 102461 ; ; RRID:Addgene_102461)
  • For your References section:

    Expressing Biologically Active Membrane Proteins in a Cell-Free Transcription-Translation Platform. Guo S, Vaish A, Chen Q, Murray RM. bioRxiv 104455 10.1101/104455
