pEF005-sgRNA-shuffle-in
(Plasmid #104441)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 104441 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

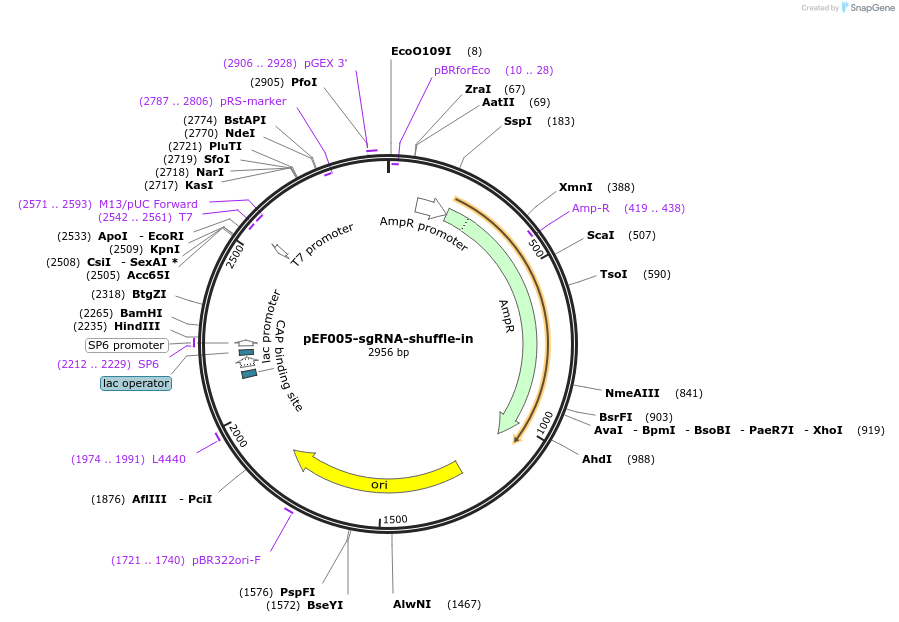

Backbone

  • Vector backbone
    pE000
  • Backbone manufacturer
    Lampropoulos et al., 2013
  • Total vector size (bp) 2934
  • Modifications to backbone
    A U6 promoter driven sgRNA-transRNA cassette is cloned into the backbone
  • Vector type
    Bacterial Expression, Plant Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    sgRNA-transRNA transcription by U6 promoter
  • Alt name
    gRNA-transRNA
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    234

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEF005-sgRNA-shuffle-in was a gift from Detlef Weigel (Addgene plasmid # 104441 ; http://n2t.net/addgene:104441 ; RRID:Addgene_104441)
  • For your References section:

    An efficient CRISPR vector toolbox for engineering large deletions in Arabidopsis thaliana. Wu R, Lucke M, Jang YT, Zhu W, Symeonidi E, Wang C, Fitz J, Xi W, Schwab R, Weigel D. Plant Methods. 2018 Aug 2;14:65. doi: 10.1186/s13007-018-0330-7. eCollection 2018. 10.1186/s13007-018-0330-7 PubMed 30083222
