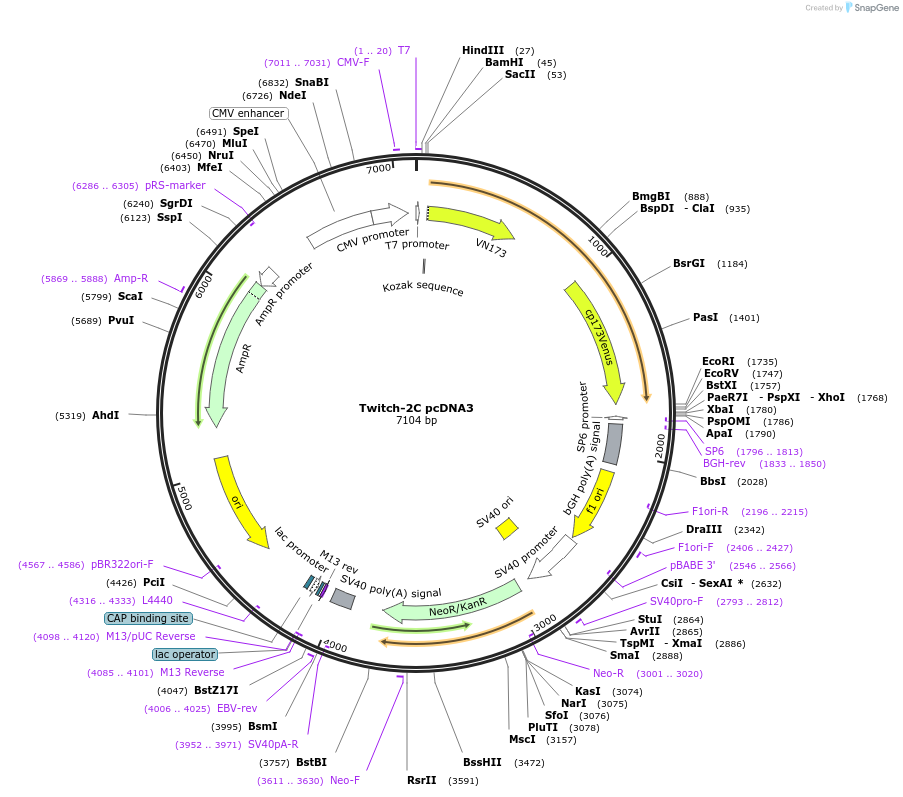

Twitch-2C pcDNA3
(Plasmid #104501)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 104501 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pSETB
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2900
  • Total vector size (bp) 4600
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Twitch-2C
  • Species
    Aequoria Victoria, Opsanus
  • Insert Size (bp)
    1700
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH1 (unknown if destroyed)
  • 3′ cloning site EcoR1 (unknown if destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer pRSET reverse
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Twitch-2C pcDNA3 was a gift from Oliver Griesbeck (Addgene plasmid # 104501 ; http://n2t.net/addgene:104501 ; RRID:Addgene_104501)
  • For your References section:

    Optimized ratiometric calcium sensors for functional in vivo imaging of neurons and T lymphocytes. Thestrup T, Litzlbauer J, Bartholomaus I, Mues M, Russo L, Dana H, Kovalchuk Y, Liang Y, Kalamakis G, Laukat Y, Becker S, Witte G, Geiger A, Allen T, Rome LC, Chen TW, Kim DS, Garaschuk O, Griesinger C, Griesbeck O. Nat Methods. 2014 Jan 5. doi: 10.1038/nmeth.2773. 10.1038/nmeth.2773 PubMed 24390440
