pUA66 theta GFP
(Plasmid
#105607)
-
PurposeExpresses GFP with no promoter
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 105607 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepUA66
- Backbone size w/o insert (bp) 3200
- Total vector size (bp) 4265
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameGFP
-
SpeciesSynthetic
- Promoter No Promoter
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer GGCGGCAAGAAAGCCATCCAG
- 3′ sequencing primer GCATCACCTTCACCCTCTCCACTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUA66 theta GFP was a gift from Pamela Silver (Addgene plasmid # 105607 ; http://n2t.net/addgene:105607 ; RRID:Addgene_105607) -
For your References section:
Rational Design of Evolutionarily Stable Microbial Kill Switches. Stirling F, Bitzan L, O'Keefe S, Redfield E, Oliver JWK, Way J, Silver PA. Mol Cell. 2017 Nov 16;68(4):686-697.e3. doi: 10.1016/j.molcel.2017.10.033. 10.1016/j.molcel.2017.10.033 PubMed 29149596

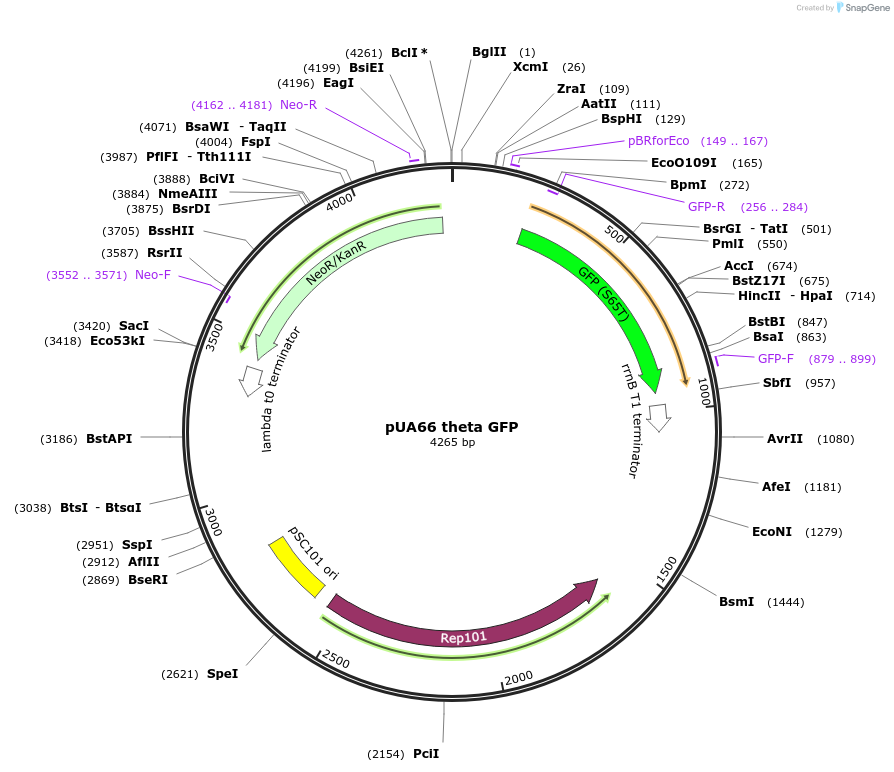

Map uploaded by the depositor.
