pGS-M1-BRG1-3xFLAG-BAF57
(Plasmid
#109189)
-
PurposePlasmid for expression of C-terminally 3xFLAG-tagged BRG1 and untagged BAF57 under the control of a p10 promoter in baculovirus/insect cell systems
-
Depositing Lab
-

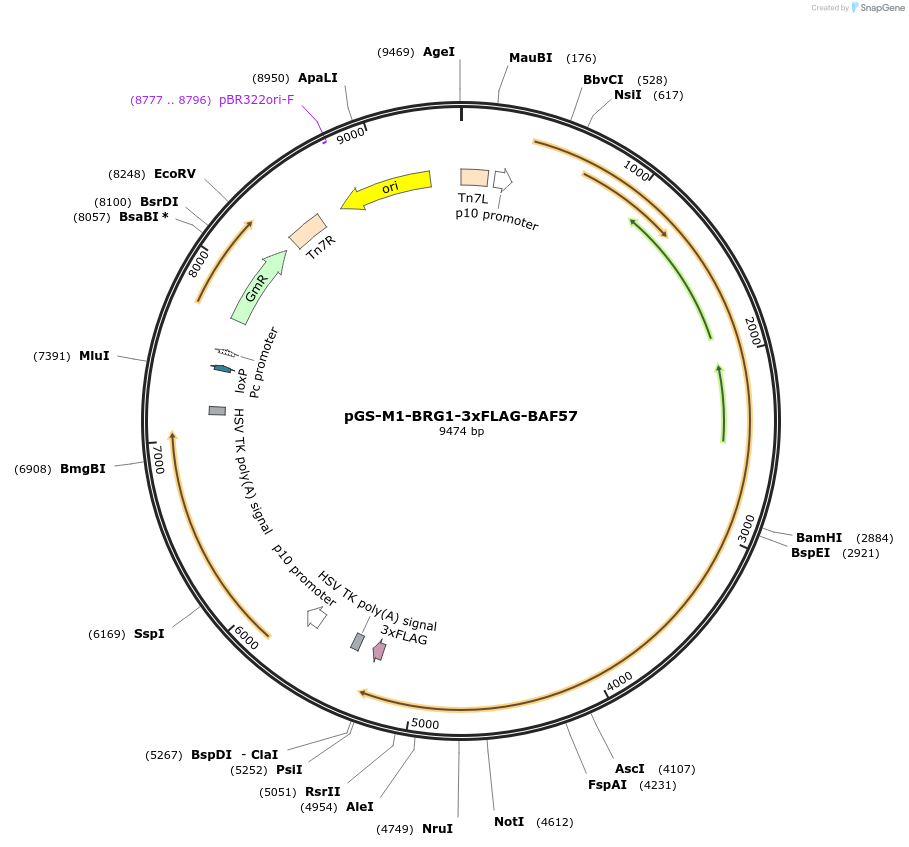

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 109189 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |
Backbone
-
Vector backbonepACEBac2
-
Backbone manufacturerGeneva Biotech
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert nameBRG1
-
Alt nameSMARCA4
-
SpeciesH. sapiens (human)
-
Insert Size (bp)4917
-
Entrez GeneSMARCA4 (a.k.a. BAF190, BAF190A, BRG1, CSS4, MRD16, OTSC12, RTPS2, SNF2, SNF2-beta, SNF2L4, SNF2LB, SWI2, hSNF2b)
- Promoter p10
-
Tag
/ Fusion Protein
- 3xFLAG (C terminal on backbone)
Cloning Information for Gene/Insert 1
- Cloning method Unknown
- 5′ sequencing primer p10
- 3′ sequencing primer HSV_rev (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameBAF57
-
Alt nameSMARCE1
-
SpeciesH. sapiens (human)
-
Entrez GeneSMARCE1 (a.k.a. BAF57, CSS5)
- Promoter p10
Cloning Information for Gene/Insert 2
- Cloning method Unknown
- 5′ sequencing primer p10
- 3′ sequencing primer HSV_rev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGS-M1-BRG1-3xFLAG-BAF57 was a gift from Monika Golas (Addgene plasmid # 109189 ; http://n2t.net/addgene:109189 ; RRID:Addgene_109189) -
For your References section:
The ATPase BRG1/SMARCA4 is a protein interaction platform that recruits BAF subunits and the transcriptional repressor REST/NRSF in neural progenitor cells. Jayaprakash S, Drakulic S, Zhao Z, Sander B, Golas MM. Mol Cell Biochem. 2019 Nov;461(1-2):171-182. doi: 10.1007/s11010-019-03600-0. Epub 2019 Aug 20. 10.1007/s11010-019-03600-0 PubMed 31428904
