PurposeAn AAV vector that expresses double floxed myristoylated iRFP670 with V5 tag and post-eGRASP linked by self-cleaving P2A peptide under the Ef1a promoter.
-
Depositing Lab
-

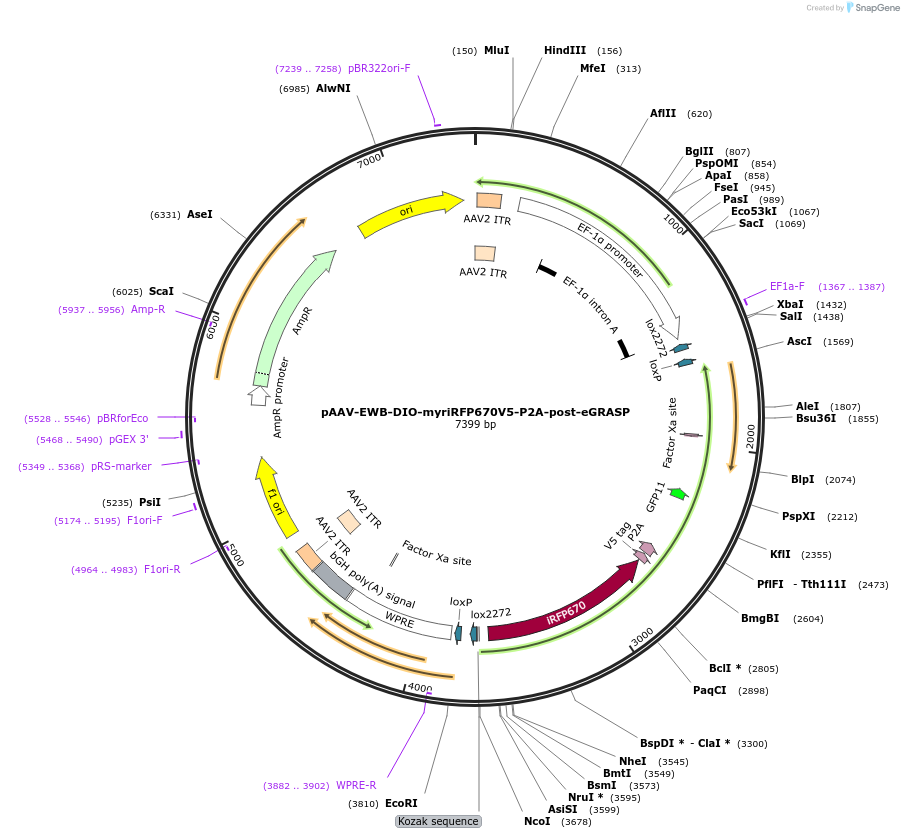

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | ||
---|---|---|---|---|---|---|
Plasmid | 111585 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $75 |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepAAV
- Backbone size w/o insert (bp) 5293
- Total vector size (bp) 7399
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemyriRFP670V5-P2A-post-eGRASP
-
Insert Size (bp)2106
- Promoter Ef1a
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NcoI (not destroyed)
- 3′ cloning site AscI (not destroyed)
- 5′ sequencing primer None
- 3′ sequencing primer None (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Terms and Licenses
-
Industry Terms
- Not Available to Industry
-
Articles Citing this Plasmid
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-EWB-DIO-myriRFP670V5-P2A-post-eGRASP was a gift from Bong-Kiun Kaang (Addgene plasmid # 111585 ; http://n2t.net/addgene:111585 ; RRID:Addgene_111585) -
For your References section:
Interregional synaptic maps among engram cells underlie memory formation. Choi JH, Sim SE, Kim JI, Choi DI, Oh J, Ye S, Lee J, Kim T, Ko HG, Lim CS, Kaang BK. Science. 2018 Apr 27;360(6387):430-435. doi: 10.1126/science.aas9204. 10.1126/science.aas9204 PubMed 29700265
