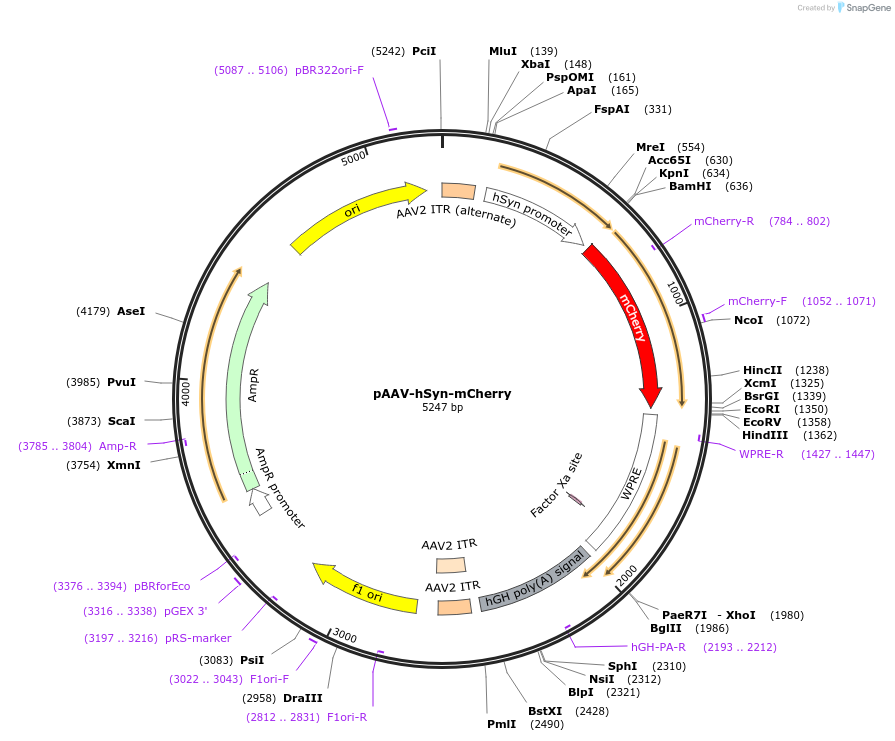

pAAV-hSyn-mCherry
(Plasmid #114472)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 114472 Standard format: Plasmid sent in bacteria as agar stab 1 $85
AAV1 114472-AAV1 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405
AAV2 114472-AAV2 100 µL at titer ≥ 5×10¹² vg/mL and Plasmid. $405
AAV5 114472-AAV5 100 µL at titer ≥ 7×10¹² vg/mL and Plasmid. $405
AAV8 114472-AAV8 100 µL at titer ≥ 1×10¹³ vg/mL and Plasmid. $405
AAV9 114472-AAV9 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. $405
AAV Retrograde 114472-AAVrg Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    AAV
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 4537
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mCherry
  • Insert Size (bp)
    711
  • Promoter hSyn

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer ccacgcgaggcgcgagatag
  • 3′ sequencing primer GAATACCAGTCAATCTTTCAC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Information for AAV1 (Catalog # 114472-AAV1) ( Back to top )

Purpose

Ready-to-use AAV1 particles produced from pAAV-hSyn-mCherry (#114472). In addition to the viral particles, you will also receive purified pAAV-hSyn-mCherry plasmid DNA.

Synapsin-driven mCherry control vector. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV1
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV2 (Catalog # 114472-AAV2) ( Back to top )

Purpose

Ready-to-use AAV2 particles produced from pAAV-hSyn-mCherry (#114472). In addition to the viral particles, you will also receive purified pAAV-hSyn-mCherry plasmid DNA.

Synapsin-driven mCherry control vector. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 5×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV2 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV2
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV5 (Catalog # 114472-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-hSyn-mCherry (#114472). In addition to the viral particles, you will also receive purified pAAV-hSyn-mCherry plasmid DNA.

Synapsin-driven mCherry control vector. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV8 (Catalog # 114472-AAV8) ( Back to top )

Purpose

Ready-to-use AAV8 particles produced from pAAV-hSyn-mCherry (#114472). In addition to the viral particles, you will also receive purified pAAV-hSyn-mCherry plasmid DNA.

Synapsin-driven mCherry control vector. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV8 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV8
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV9 (Catalog # 114472-AAV9) ( Back to top )

Purpose

Ready-to-use AAV9 particles produced from pAAV-hSyn-mCherry (#114472). In addition to the viral particles, you will also receive purified pAAV-hSyn-mCherry plasmid DNA.

Synapsin-driven mCherry control vector. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV9 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV9
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Information for AAV Retrograde (Catalog # 114472-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV-hSyn-mCherry (#114472). In addition to the viral particles, you will also receive purified pAAV-hSyn-mCherry plasmid DNA.

Synapsin-driven mCherry control vector. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mCherry

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-hSyn-mCherry was a gift from Karl Deisseroth (Addgene plasmid # 114472 ; http://n2t.net/addgene:114472 ; RRID:Addgene_114472)

    For viral preps, please replace (Addgene plasmid # 114472) in the above sentence with: (Addgene viral prep # 114472-AAV1), (Addgene viral prep # 114472-AAV2), (Addgene viral prep # 114472-AAV5), (Addgene viral prep # 114472-AAV8), (Addgene viral prep # 114472-AAV9), or (Addgene viral prep # 114472-AAVrg)
