pENTR2B-dCas9-KRAB
(Plasmid
#115547)
-
PurposeEntry cassette for dCas9-KRAB
-
Depositing Lab
-
Depositing OrganizationUniversity of Massachusetts, Worcester
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 115547 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 115547-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 115547-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepENTR2B
- Backbone size w/o insert (bp) 2280
- Total vector size (bp) 6826
-
Vector typeMammalian Expression, Bacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namedCas9-KRAB
-
SpeciesSynthetic
-
Insert Size (bp)4546
-
Tag
/ Fusion Protein
- HA (C terminal on insert)
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer attL1
- 3′ sequencing primer attL2
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 115547-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 115547-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENTR2B-dCas9-KRAB was a gift from Rene Maehr (Addgene plasmid # 115547 ; http://n2t.net/addgene:115547 ; RRID:Addgene_115547) -
For your References section:
Single-Cell RNA-Sequencing-Based CRISPRi Screening Resolves Molecular Drivers of Early Human Endoderm Development. Genga RMJ, Kernfeld EM, Parsi KM, Parsons TJ, Ziller MJ, Maehr R. Cell Rep. 2019 Apr 16;27(3):708-718.e10. doi: 10.1016/j.celrep.2019.03.076. 10.1016/j.celrep.2019.03.076 PubMed 30995470

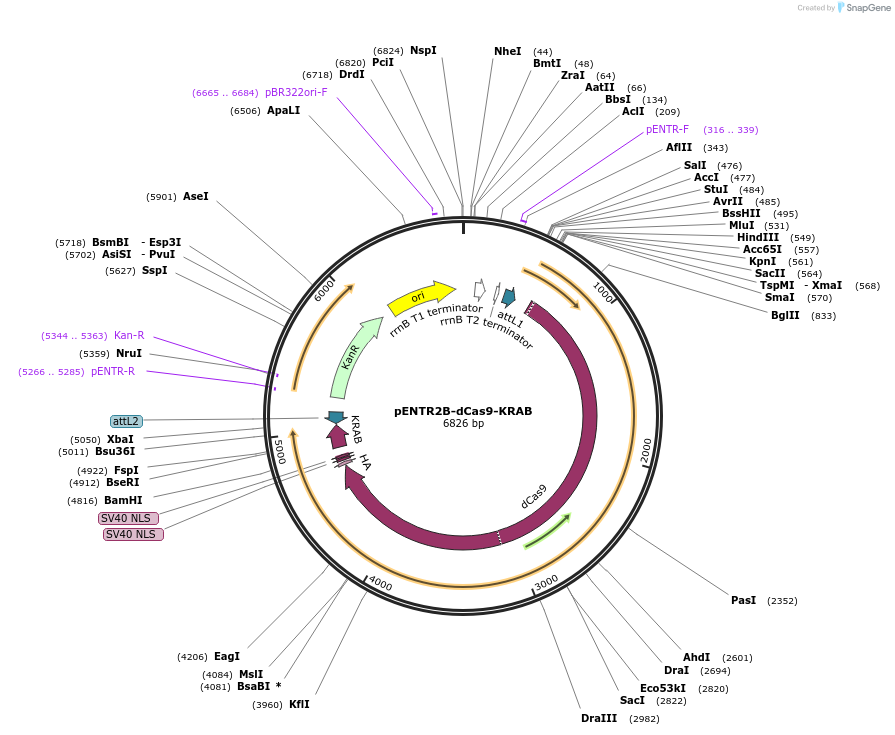

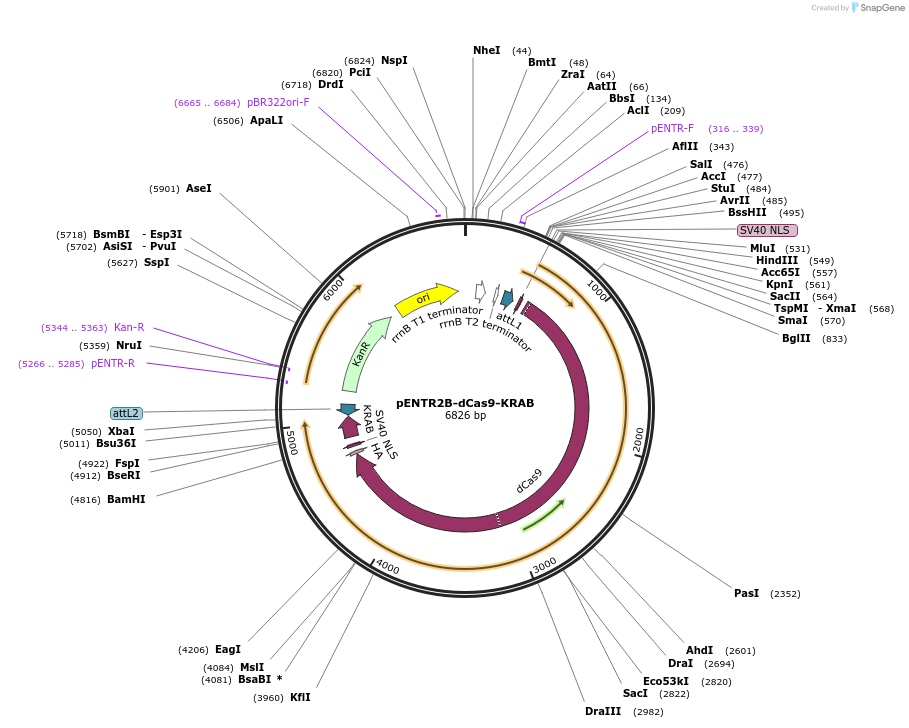

Map uploaded by the depositor.
