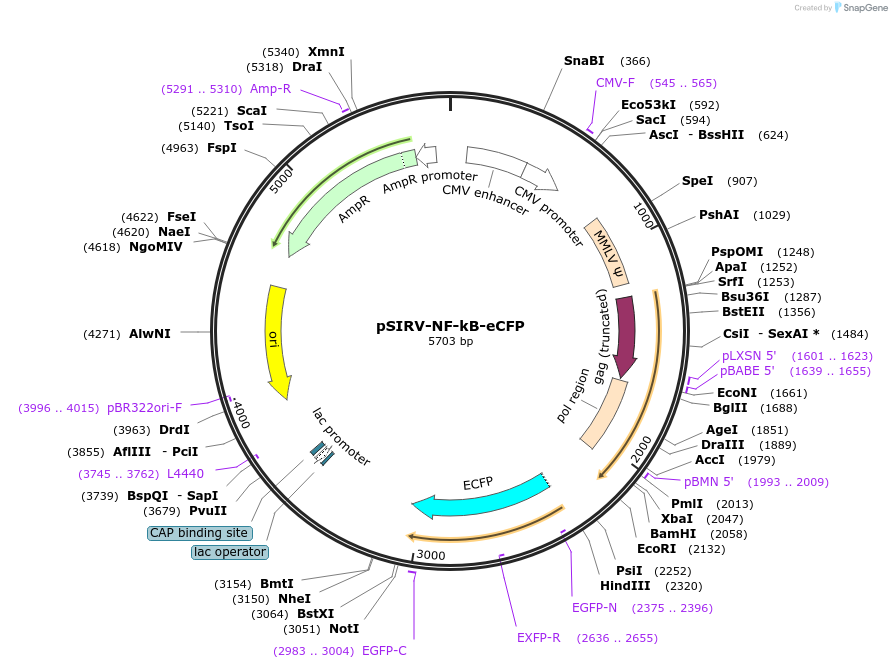

pSIRV-NF-kB-eCFP
(Plasmid #118094)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 118094 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pSIRV
  • Backbone size w/o insert (bp) 4878
  • Total vector size (bp) 5598
  • Vector type
    Retroviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    eCFP
  • Species
    Synthetic
  • Insert Size (bp)
    720
  • Promoter minimal promoter with NF-kB responsive element

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Hind III (not destroyed)
  • 3′ cloning site Not I (not destroyed)
  • 5′ sequencing primer GAGGGTATATAATGGAAGCTCG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSIRV-NF-kB-eCFP was a gift from Peter Steinberger (Addgene plasmid # 118094 ; http://n2t.net/addgene:118094 ; RRID:Addgene_118094)
  • For your References section:

    Assessment of costimulation and coinhibition in a triple parameter T cell reporter line: Simultaneous measurement of NF-kappaB, NFAT and AP-1. Jutz S, Leitner J, Schmetterer K, Doel-Perez I, Majdic O, Grabmeier-Pfistershammer K, Paster W, Huppa JB, Steinberger P. J Immunol Methods. 2016 Jan 15. pii: S0022-1759(16)30007-2. doi: 10.1016/j.jim.2016.01.007. 10.1016/j.jim.2016.01.007 PubMed 26780292
