pLNCX2-OptoTGFBRs
(Plasmid #118965)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 118965 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

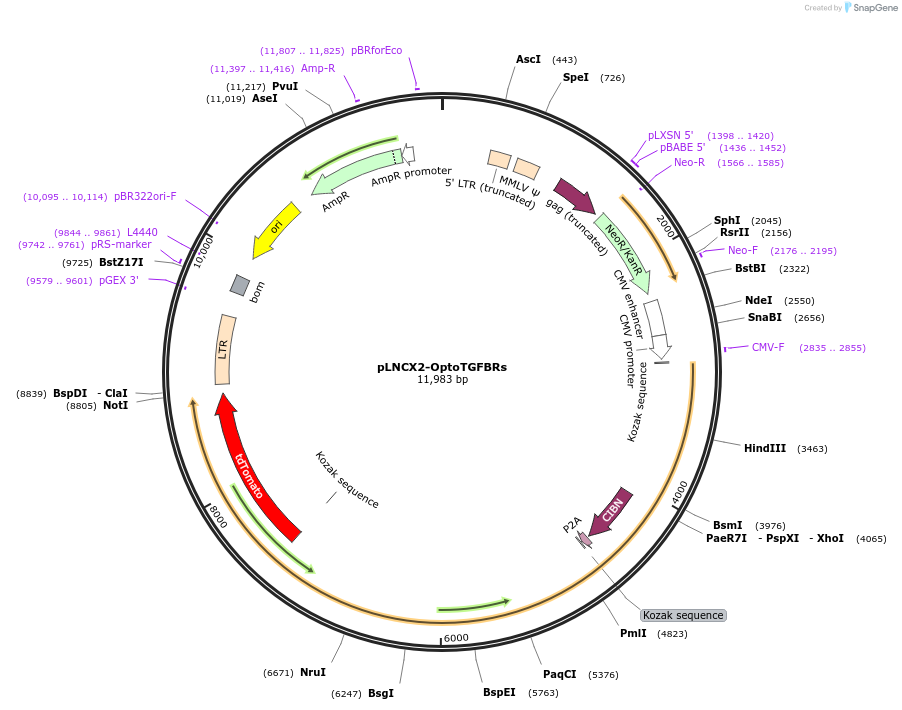

Backbone

  • Vector backbone
    pLNCX2
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 6132
  • Total vector size (bp) 11984
  • Vector type
    Retroviral
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    OptoTGFBRs
  • Alt name
    Lyn-cytoTGFbR1-CIBN-P2A-cytoTGFbR2-PHR-tdTomato
  • Species
    M. musculus (mouse), A. thaliana (mustard weed)
  • Insert Size (bp)
    5896
  • GenBank ID
    NM_009370 NM_029575
  • Entrez Gene
    Tgfb1 (a.k.a. TGF-beta1, TGFbeta1, Tgfb, Tgfb-1)
  • Entrez Gene
    Tgfbr2 (a.k.a. 1110020H15Rik, DNIIR, RIIDN, TBR-II, TbetaR-II, TbetaRII)
  • Promoter CMV
  • Tag / Fusion Protein
    • tdTomato (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLNCX2-OptoTGFBRs was a gift from Won Do Heo (Addgene plasmid # 118965 ; http://n2t.net/addgene:118965 ; RRID:Addgene_118965)
  • For your References section:

    Spatiotemporal Control of TGF-beta Signaling with Light. Li Y, Lee M, Kim N, Wu G, Deng D, Kim JM, Liu X, Heo WD, Zi Z. ACS Synth Biol. 2018 Feb 16;7(2):443-451. doi: 10.1021/acssynbio.7b00225. Epub 2018 Jan 12. 10.1021/acssynbio.7b00225 PubMed 29241005
