|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||11914||Standard format: Plasmid sent in bacteria as agar stab||1||$65|
This material is available to academics and nonprofits only.

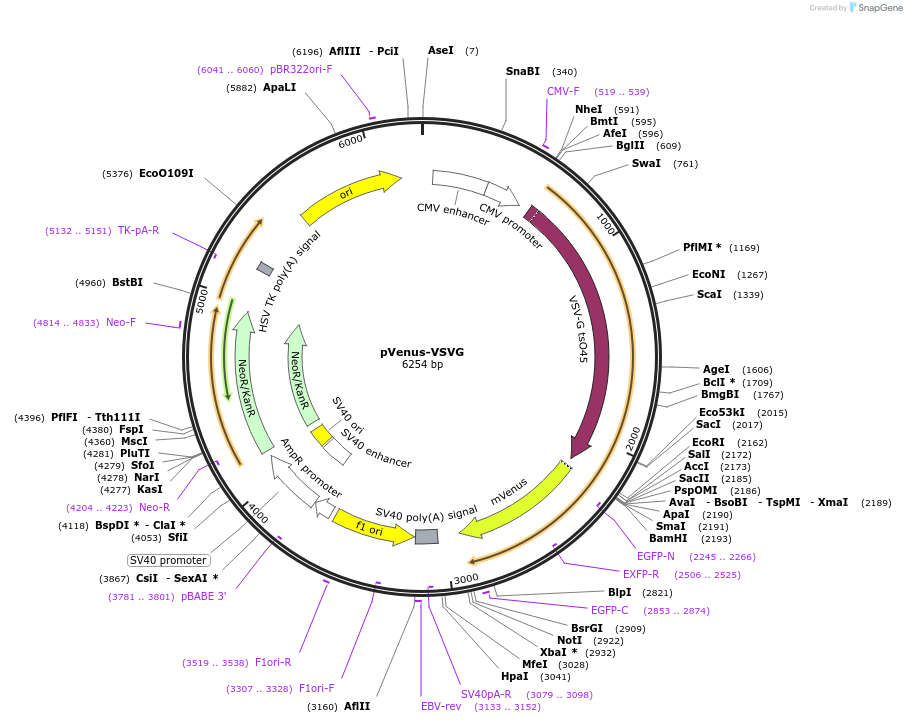

- Backbone size w/o insert (bp) 4733
Vector typeMammalian Expression
Selectable markersNeomycin (select with G418)
Growth in Bacteria
Alt nameVesicular stomatitus virus G protein
Insert Size (bp)1500
MutationF46L, F64L, M153T, V163A, S175G, T203Y, A206K relative the wild type GFP sequence. The EGFP (Clontech Laboratories, Inc., Palo, Alto, CA) contains a valine immediately after the start codon that is not found in the wild type sequence. However, to avoid confusion with previously published work on GFP mutants, the wild type residue numbers are used.
- Cloning method Restriction Enzyme
- 5′ cloning site BglII (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer CMV-F (Common Sequencing Primers)
Terms and Licenses
Articles Citing this Plasmid
The EGFP (Clontech Laboratories, Inc., Palo, Alto, CA) contains a valine immediately after the start codon that is not found in the wild type sequence. However, to avoid confusion with previously published work on GFP mutants, the wild type residue numbers are used. The Kozak sequence at the beginning of the GFP encoding region of the pEYFP-N1 plasmid from Clontech has been disrupted. Reference for the A206K mutation is Zacharias, D. A., Violin, J. D., Newton, A. C., and Tsien, R. Y. (2002) Science 296, 913-6. Reference for Venus is Nagai, T., Ibata, K., Park, E. S., Kubota, M., Mikoshiba, K., and Miyawaki, A. (2002) Nat Biotechnol 20, 87-90.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pVenus-VSVG was a gift from Jennifer Lippincott-Schwartz (Addgene plasmid # 11914 ; http://n2t.net/addgene:11914 ; RRID:Addgene_11914)
For your References section:ER-to-Golgi transport visualized in living cells. Presley JF, Cole NB, Schroer TA, Hirschberg K, Zaal KJ, Lippincott-Schwartz J. Nature. 1997 Sep 4. 389(6646):81-5. 10.1038/38001 PubMed 9288971
