pCAP03-sp44/p21
(Plasmid
#120232)
-
PurposeCarries bidirectional promoter cassette containing sp44 and p21 promoters and apramycin resistance gene flanked by two FRT sites that can be amplified with homology sequence for refactoring.
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 120232 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepCAP03
-
Vector typeSynthetic Biology
-
Selectable markersinsert contains apramycin resistance as well
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namebidirectional promoter cassette containing sp44 and p21 promoters and apramycin resistance gene flanked by two FRT sites
-
Mutationaac(3)IV (apramycin resistance gene)
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAP03-sp44/p21 was a gift from Bradley Moore (Addgene plasmid # 120232 ; http://n2t.net/addgene:120232 ; RRID:Addgene_120232) -
For your References section:
Refactoring the Cryptic Streptophenazine Biosynthetic Gene Cluster Unites Phenazine, Polyketide, and Nonribosomal Peptide Biochemistry. Bauman KD, Li J, Murata K, Mantovani SM, Dahesh S, Nizet V, Luhavaya H, Moore BS. Cell Chem Biol. 2019 Feb 15. pii: S2451-9456(19)30038-8. doi: 10.1016/j.chembiol.2019.02.004. 10.1016/j.chembiol.2019.02.004 PubMed 30853419

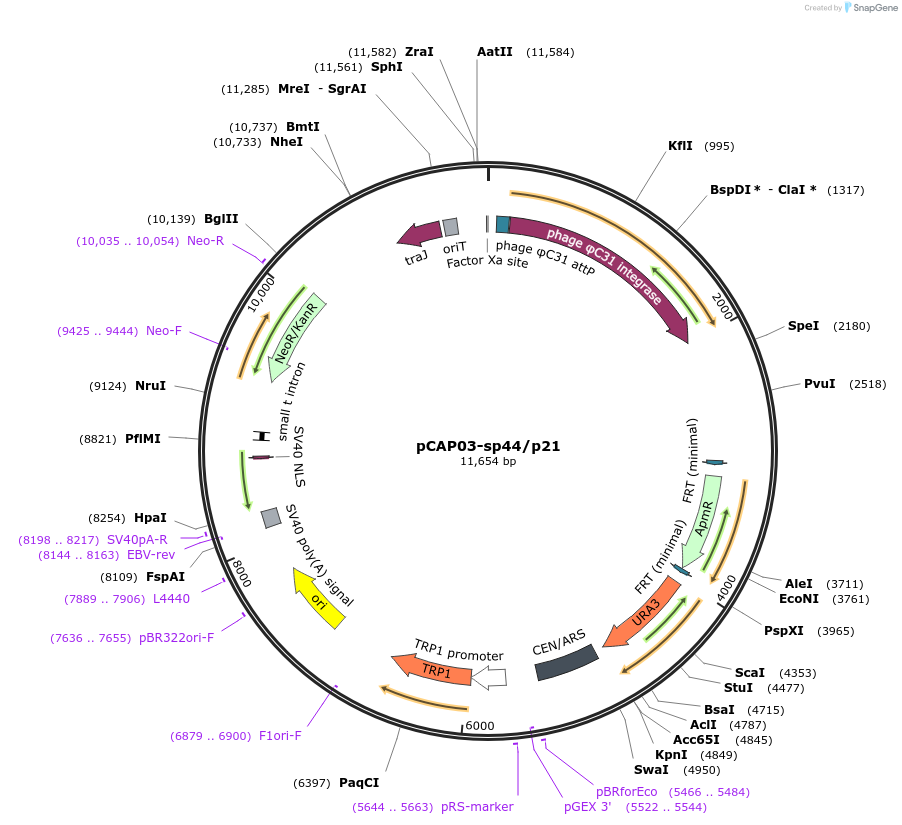

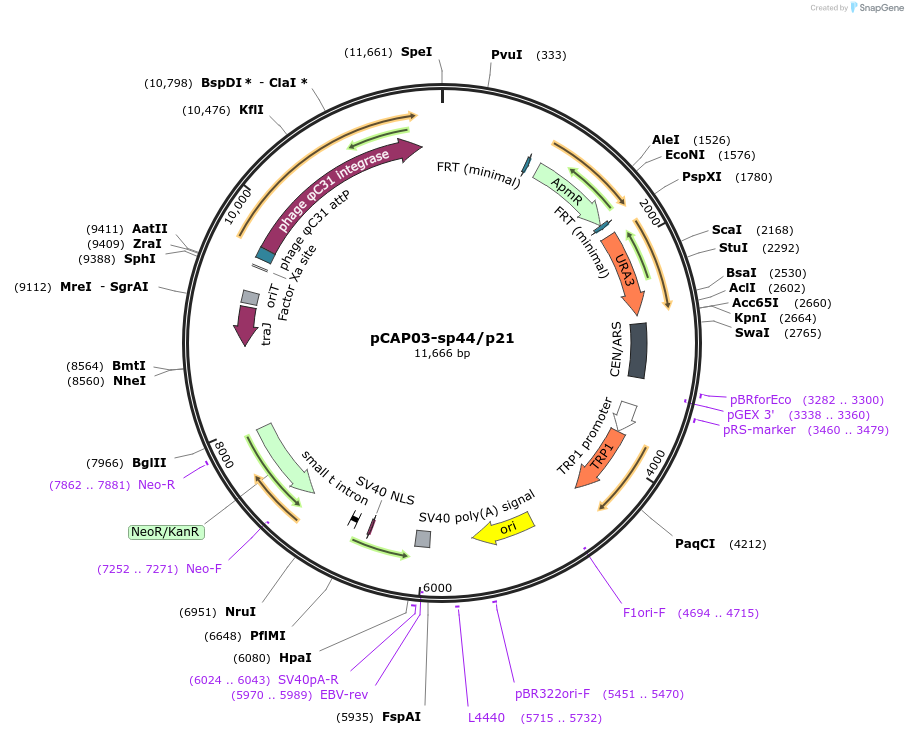

Map uploaded by the depositor.
