pQL193 BoNT(1-146)-iLID(V416I)
(Plasmid #122979)

Print

Ordering

This material is available to academics and nonprofits only. Currently unavailable outside the U.S.
Item Catalog # Description Quantity Price (USD)
Plasmid 122979 Standard format: Plasmid sent in bacteria as agar stab 1 $89

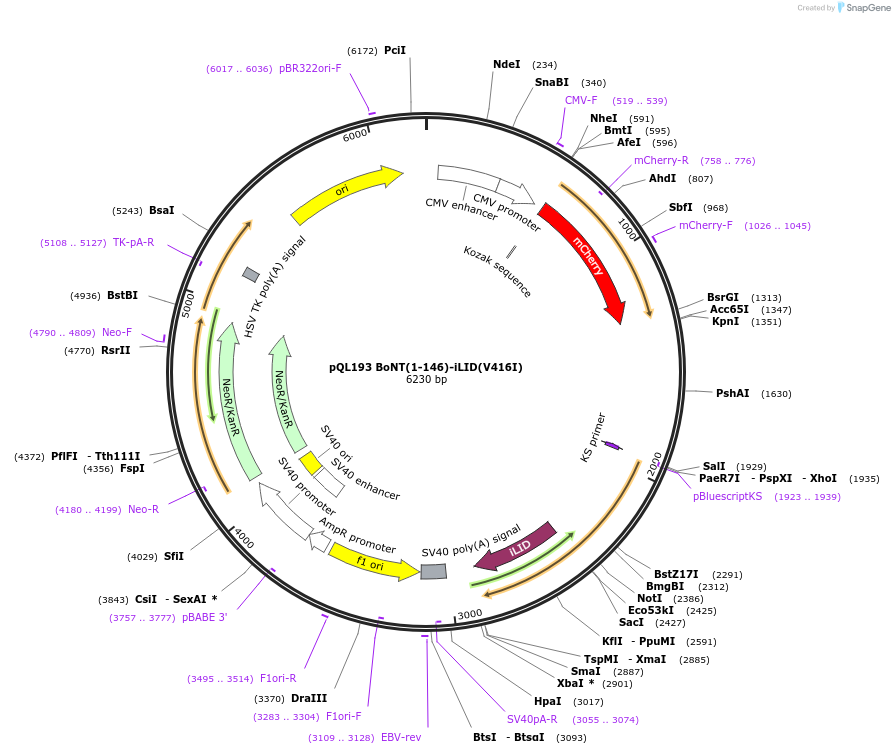

Backbone

  • Vector backbone
    pmCherryC1
  • Backbone manufacturer
    Clontech
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    botulinum toxin B
  • Promoter CMV
  • Tag / Fusion Protein
    • iLID (AsLOV2-ssrA) with V416I mutation (using AsLOV2 nomenclature for mutation) (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Xho I (not destroyed)
  • 3′ cloning site Xma I (not destroyed)
  • 5′ sequencing primer CMV
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    iLID was amplified from a clone from Brian Kuhlman's lab

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQL193 BoNT(1-146)-iLID(V416I) was a gift from Chandra Tucker (Addgene plasmid # 122979)

  • For your References section:

    A Photoactivatable Botulinum Neurotoxin for Inducible Control of Neurotransmission. Liu Q, Sinnen BL, Boxer EE, Schneider MW, Grybko MJ, Buchta WC, Gibson ES, Wysoczynski CL, Ford CP, Gottschalk A, Aoto J, Tucker CL, Kennedy MJ. Neuron. 2019 Jan 15. pii: S0896-6273(19)30003-0. doi: 10.1016/j.neuron.2019.01.002. 10.1016/j.neuron.2019.01.002 PubMed 30704911
