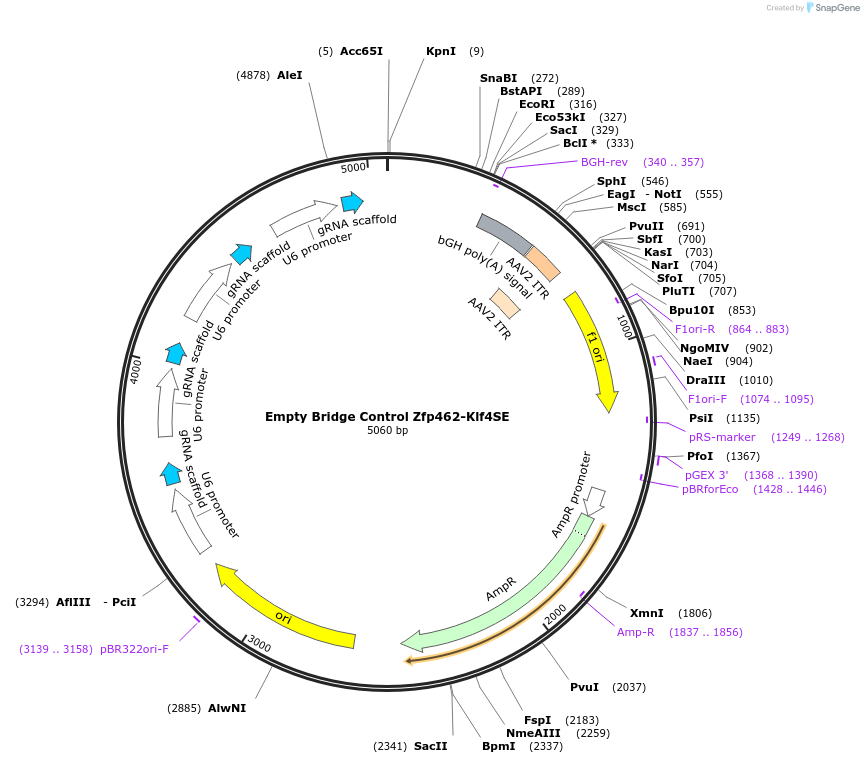

Empty Bridge Control Zfp462-Klf4SE
(Plasmid #127666)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 127666 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    Derived from pUC19
  • Backbone manufacturer
    Cremins lab
  • Backbone size w/o insert (bp) 3308
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    gRNAs 129, 135, 115, 117
  • gRNA/shRNA sequence
    TACATGCAGTAGTACTAAGT, TTTGTGTTTTAGTGTAGATT, TAAAGAAAAGTGTTTATCGA, AAGTGTTTATCGAGGGAAAG
  • Species
    Synthetic
  • Insert Size (bp)
    1752
  • Promoter hU6

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer pBR322ori-F
  • 3′ sequencing primer BGH Reverse
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Empty Bridge Control Zfp462-Klf4SE was a gift from Jennifer Phillips-Cremins (Addgene plasmid # 127666 ; http://n2t.net/addgene:127666 ; RRID:Addgene_127666)
  • For your References section:

    LADL: light-activated dynamic looping for endogenous gene expression control. Kim JH, Rege M, Valeri J, Dunagin MC, Metzger A, Titus KR, Gilgenast TG, Gong W, Beagan JA, Raj A, Phillips-Cremins JE. Nat Methods. 2019 Jun 24. pii: 10.1038/s41592-019-0436-5. doi: 10.1038/s41592-019-0436-5. 10.1038/s41592-019-0436-5 PubMed 31235883
