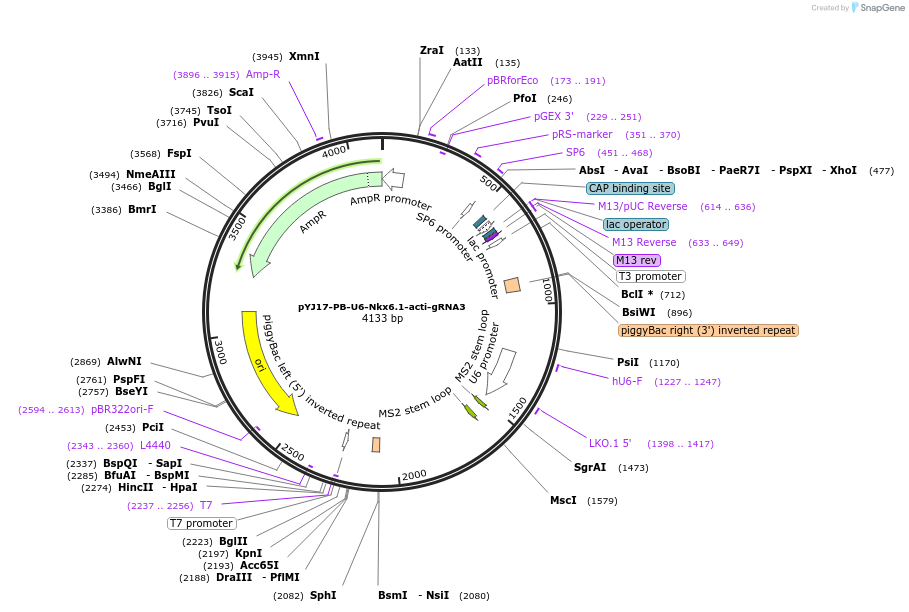

pYJ17-PB-U6-Nkx6.1-acti-gRNA3
(Plasmid #131061)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 131061 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    PB-MS2-sgRNA
  • Backbone size w/o insert (bp) 4131
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    NKX6.1 activation gRNA3
  • gRNA/shRNA sequence
    GGCGCGAGCGGAGAGGCACT
  • Species
    H. sapiens (human)
  • Entrez Gene
    NKX6-1 (a.k.a. NKX6.1, NKX6A)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pYJ17-PB-U6-Nkx6.1-acti-gRNA3 was a gift from Xiaojun Lian (Addgene plasmid # 131061 ; http://n2t.net/addgene:131061 ; RRID:Addgene_131061)
