pYJ23-lenti-MS2-U6-NKX6.1-acti-gRNA1
(Plasmid #131067)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 131067 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

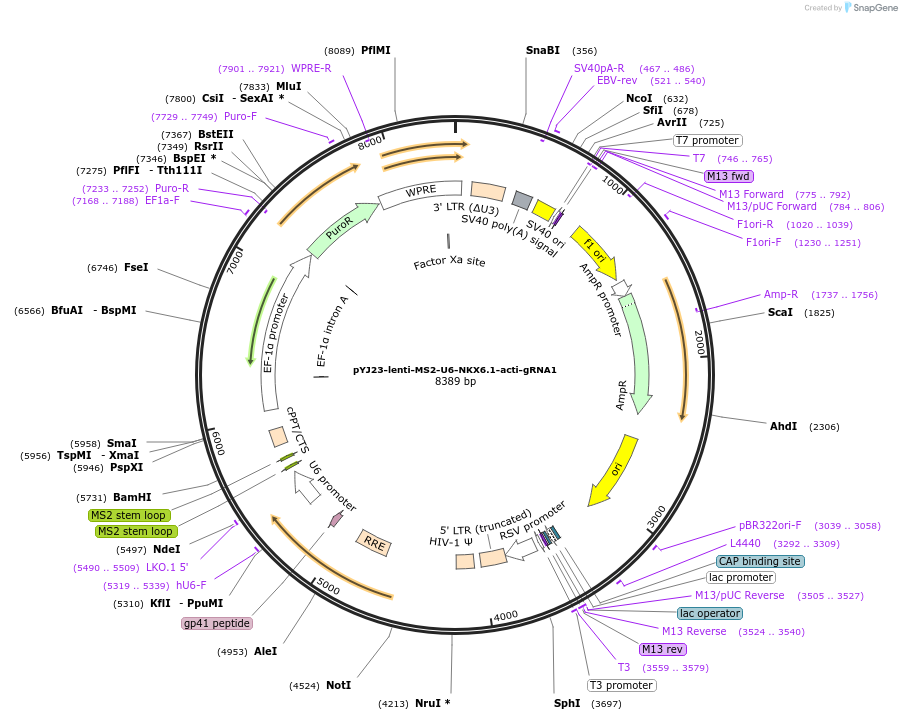

Backbone

  • Vector backbone
    plenti-MS2-U6-gRNA-DsRed
  • Backbone size w/o insert (bp) 8162
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NKX6.1 activation gRNA1
  • gRNA/shRNA sequence
    GCAGAGGAGCCGGAAGCGCCG
  • Species
    H. sapiens (human)
  • Entrez Gene
    NKX6-1 (a.k.a. NKX6.1, NKX6A)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer na
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pYJ23-lenti-MS2-U6-NKX6.1-acti-gRNA1 was a gift from Xiaojun Lian (Addgene plasmid # 131067 ; http://n2t.net/addgene:131067 ; RRID:Addgene_131067)
