pCEP4-myc-HLA-A3
(Plasmid
#135505)
-
PurposeMammalian expression of myc-tagged HLA-A*03:01
-
Depositing Lab
-

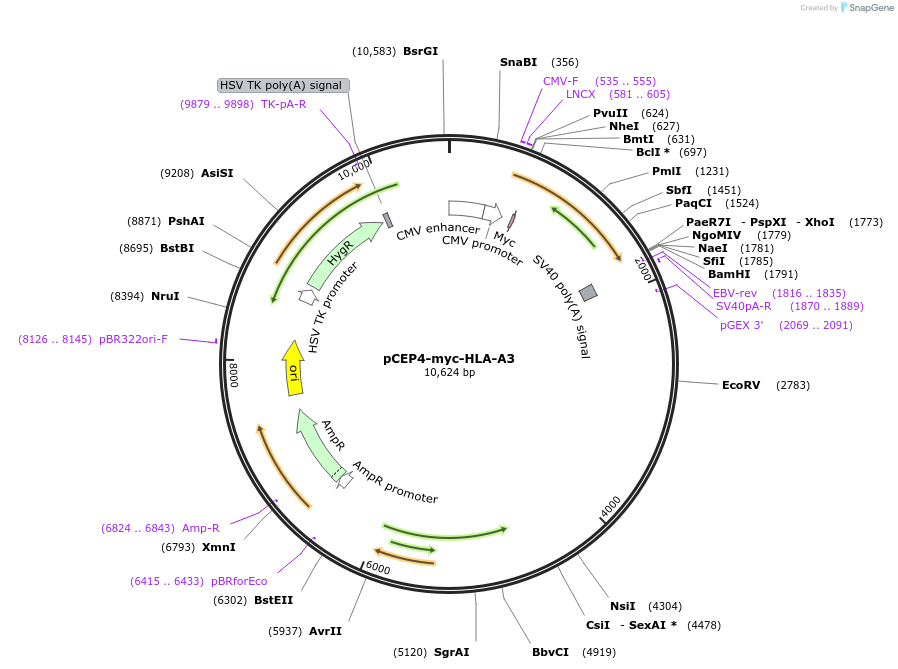

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 135505 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCEP4
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 10381
- Total vector size (bp) 10624
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHLA-A*03:01
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1152
-
GenBank IDNP_002107.3
-
Entrez GeneHLA-A (a.k.a. HLAA)
- Promoter CMV
-
Tags
/ Fusion Proteins
- Signal peptide from hemagglutinin (N terminal on insert)
- Extracellular c-myc epitope tag (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer CMV_fwd
- 3′ sequencing primer EBV_rev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCEP4-myc-HLA-A3 was a gift from Erik Procko (Addgene plasmid # 135505 ; http://n2t.net/addgene:135505 ; RRID:Addgene_135505) -
For your References section:
Molecular determinants of chaperone interactions on MHC-I for folding and antigen repertoire selection. McShan AC, Devlin CA, Overall SA, Park J, Toor JS, Moschidi D, Flores-Solis D, Choi H, Tripathi S, Procko E, Sgourakis NG. Proc Natl Acad Sci U S A. 2019 Dec 17;116(51):25602-25613. doi: 10.1073/pnas.1915562116. Epub 2019 Dec 3. 10.1073/pnas.1915562116 PubMed 31796585
