pAAV-Ef1a-Con/Fon/Von GCaMP 6m
(Plasmid #137165)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 137165 Standard format: Plasmid sent in bacteria as agar stab 1 $85

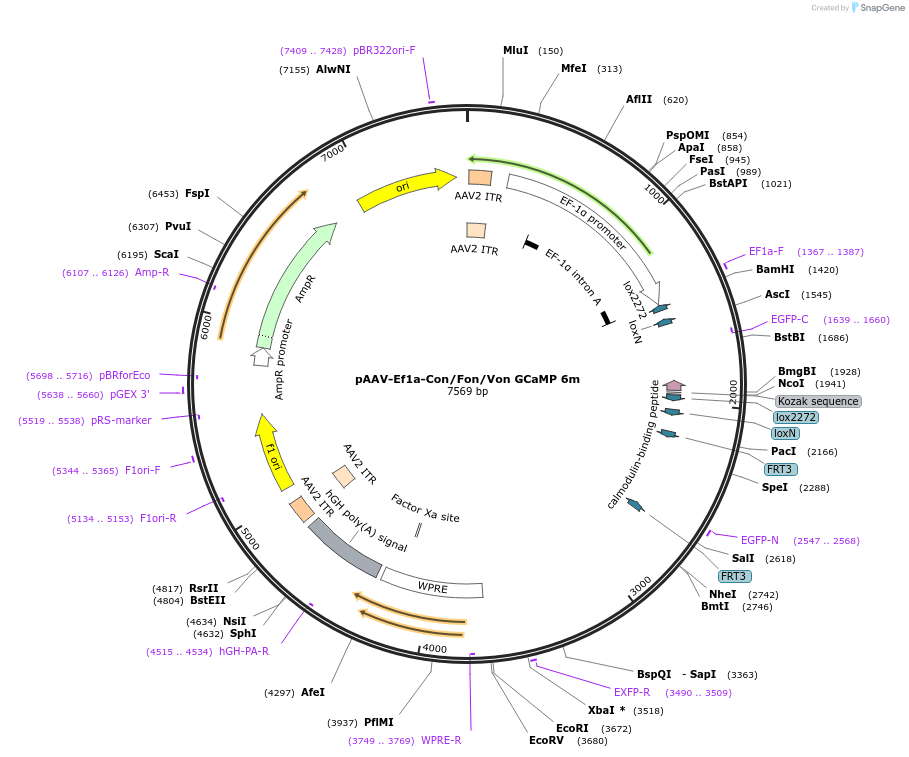

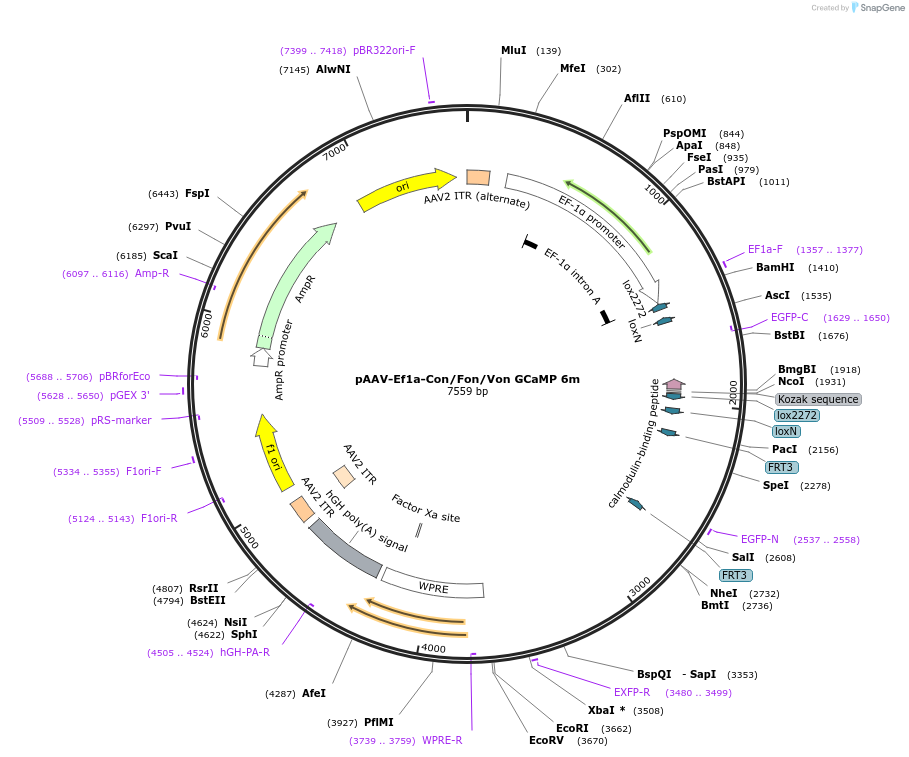

Backbone

  • Vector backbone
    AAV2-Ef1a-WPRE
  • Backbone size w/o insert (bp) 4600
  • Vector type
    AAV, Cre/Lox, Synthetic Biology ; Flp/FRT

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    3x-GCaMP6M
  • Species
    Synthetic; Prokaryotic
  • Insert Size (bp)
    2300
  • Mutation
    Removed RSET tag
  • Promoter Ef1a

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer TGGAATTTGCCCTTTTTGAG
  • 3′ sequencing primer GGGCCACAACTCCTCATAAA
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Additional sequencing primers: Intron 2F GGGACGACATGACTTAACCAG; Intron 2R CCAGCCCTTCTCATGTTCAG; Intron 1F CCTGTATGTGACCCATGTGC; Intron 1R: GCACATGGGTCACATACAGG

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-Ef1a-Con/Fon/Von GCaMP 6m was a gift from Karl Deisseroth & INTRSECT 2.0 Project (Addgene plasmid # 137165 ; http://n2t.net/addgene:137165 ; RRID:Addgene_137165)
  • For your References section:

    Comprehensive Dual- and Triple-Feature Intersectional Single-Vector Delivery of Diverse Functional Payloads to Cells of Behaving Mammals. Fenno LE, Ramakrishnan C, Kim YS, Evans KE, Lo M, Vesuna S, Inoue M, Cheung KYM, Yuen E, Pichamoorthy N, Hong ASO, Deisseroth K. Neuron. 2020 Jun 20. pii: S0896-6273(20)30432-3. doi: 10.1016/j.neuron.2020.06.003. 10.1016/j.neuron.2020.06.003 PubMed 32574559
