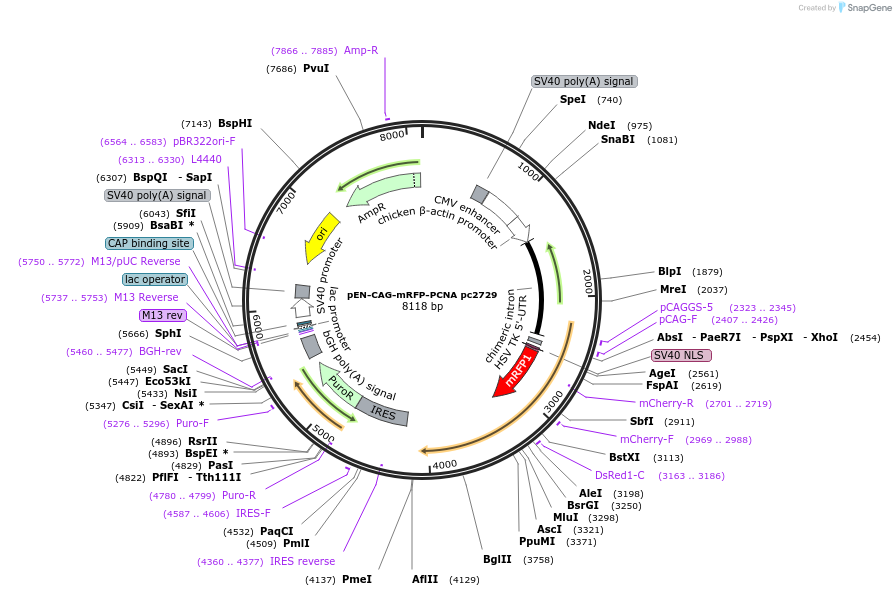

pEN-CAG-mRFP-PCNA pc2729
(Plasmid #166040)


Item Catalog # Description Quantity Price (USD)
Plasmid 166040 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Vector type
    Mammalian Expression
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
    Proliferating Cell Nuclear Antigen
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • GenBank ID
  • Entrez Gene
    PCNA (a.k.a. ATLD2)
  • Promoter CAG
  • Tag / Fusion Protein
    • mRFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site AflIII (not destroyed)
  • 5′ sequencing primer AGCTGGACATCACCTCCCACAACG
  • (Common Sequencing Primers)

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEN-CAG-mRFP-PCNA pc2729 was a gift from Cristina Cardoso (Addgene plasmid # 166040 ; ; RRID:Addgene_166040)
  • For your References section:

    Peripheral re-localization of constitutive heterochromatin advances its replication timing and impairs maintenance of silencing marks. Heinz KS, Casas-Delucchi CS, Torok T, Cmarko D, Rapp A, Raska I, Cardoso MC. Nucleic Acids Res. 2018 Jul 6;46(12):6112-6128. doi: 10.1093/nar/gky368. 10.1093/nar/gky368 PubMed 29750270
