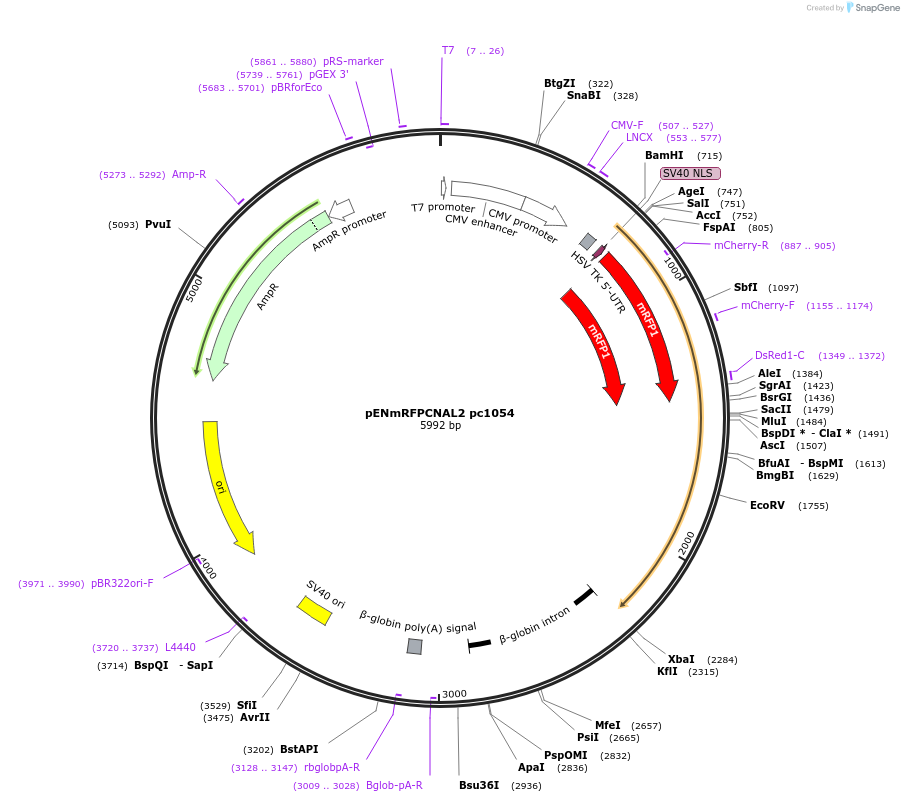

PurposeThe fusion protein contains a SV40 NLS followed by mRFP, linker and human PCNA.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||167567||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.
Vector typeMammalian Expression
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
Gene/Insert nameProliferating Cell Nuclear Antigen
SpeciesH. sapiens (human)
Entrez GenePCNA (a.k.a. ATLD2)
- Promoter CMV
/ Fusion Protein
- mRFP (N terminal on insert)
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site BsrGI (not destroyed)
- 5′ sequencing primer AGCTGGACATCACCTCCCACAACG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pENmRFPCNAL2 pc1054 was a gift from Cristina Cardoso (Addgene plasmid # 167567 ; http://n2t.net/addgene:167567 ; RRID:Addgene_167567)
For your References section:PCNA acts as a stationary loading platform for transiently interacting Okazaki fragment maturation proteins. Sporbert A, Domaing P, Leonhardt H, Cardoso MC. Nucleic Acids Res. 2005 Jun 21;33(11):3521-8. doi: 10.1093/nar/gki665. Print 2005. 10.1093/nar/gki665 PubMed 15972794
