pcDNA3-ZnGreen1
(Plasmid
#169470)
-
Purposecytosolic ZnGreen1 zinc sensor with 633 nM Kd
-
Depositing Lab
-
Depositing OrganizationUniversity of California, Riverside
Located in United States of America -

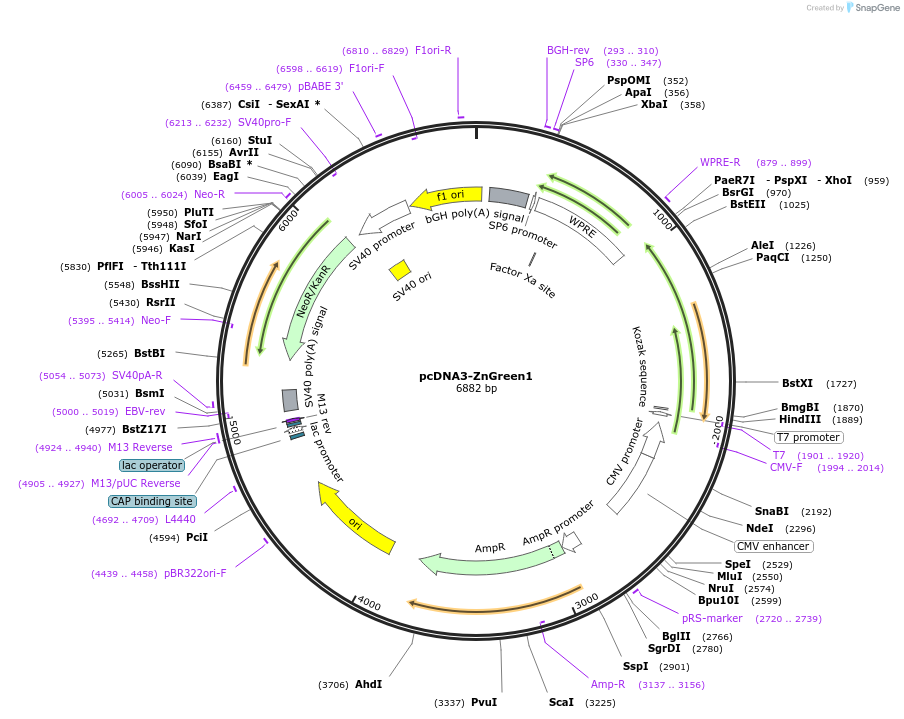

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 169470 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 169470-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 169470-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameZnGreen1
-
SpeciesSynthetic
-
Insert Size (bp)909
-
GenBank IDKU867813
- Promoter CMV
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV-F
- 3′ sequencing primer BGH-rev
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
When selecting zinc biosensors for your particular application, please pay attention to the Kd. The Kd of the sensor has to match the concentration range of your particular experiments.
DNA (Catalog # 169470-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 169470-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3-ZnGreen1 was a gift from Huiwang Ai (Addgene plasmid # 169470 ; http://n2t.net/addgene:169470 ; RRID:Addgene_169470) -
For your References section:
Single Fluorescent Protein-Based Indicators for Zinc Ion (Zn2+). Chen Z, Ai HW. Anal Chem. 2016 Sep 20;88(18):9029-36. doi: 10.1021/acs.analchem.6b01653. Epub 2016 Aug 29. 10.1021/acs.analchem.6b01653 PubMed 27539450
