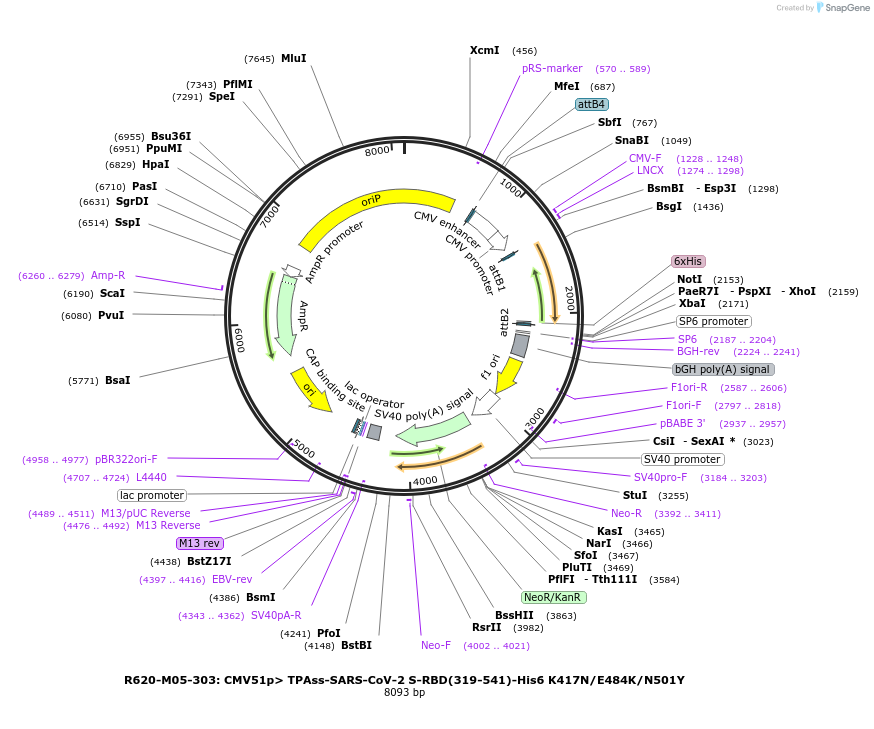

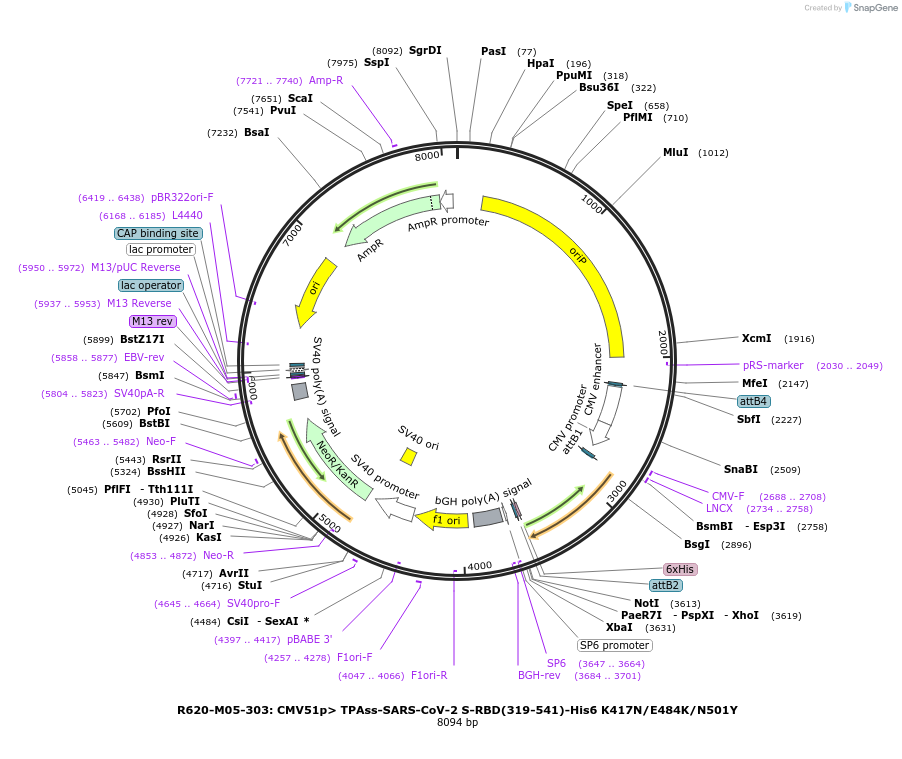

R620-M05-303: CMV51p> TPAss-SARS-CoV-2 S-RBD(319-541)-His6 K417N/E484K/N501Y
(Plasmid #170191)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 170191 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pDest-303
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SARS-CoV-2 RBD
  • Species
    SARS-CoV-2
  • Mutation
    K417N, E484K, N501Y
  • Entrez Gene
    S (a.k.a. GU280_gp02, spike glycoprotein)
  • Promoter CMV51
  • Tag / Fusion Protein
    • His6 (C terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

DNA sequence optimized for mammalian expression

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    R620-M05-303: CMV51p> TPAss-SARS-CoV-2 S-RBD(319-541)-His6 K417N/E484K/N501Y was a gift from Dominic Esposito (Addgene plasmid # 170191 ; http://n2t.net/addgene:170191 ; RRID:Addgene_170191)
  • For your References section:

    Improved production of SARS-CoV-2 spike receptor-binding domain (RBD) for serology assays. Mehalko J, Drew M, Snead K, Denson JP, Wall V, Taylor T, Sadtler K, Messing S, Gillette W, Esposito D. Protein Expr Purif. 2021 Mar;179:105802. doi: 10.1016/j.pep.2020.105802. Epub 2020 Nov 25. 10.1016/j.pep.2020.105802 PubMed 33248226
