HA-HA-AR-NTD-DBD
(Plasmid #171236)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 171236 Standard format: Plasmid sent in bacteria as agar stab 1 $85

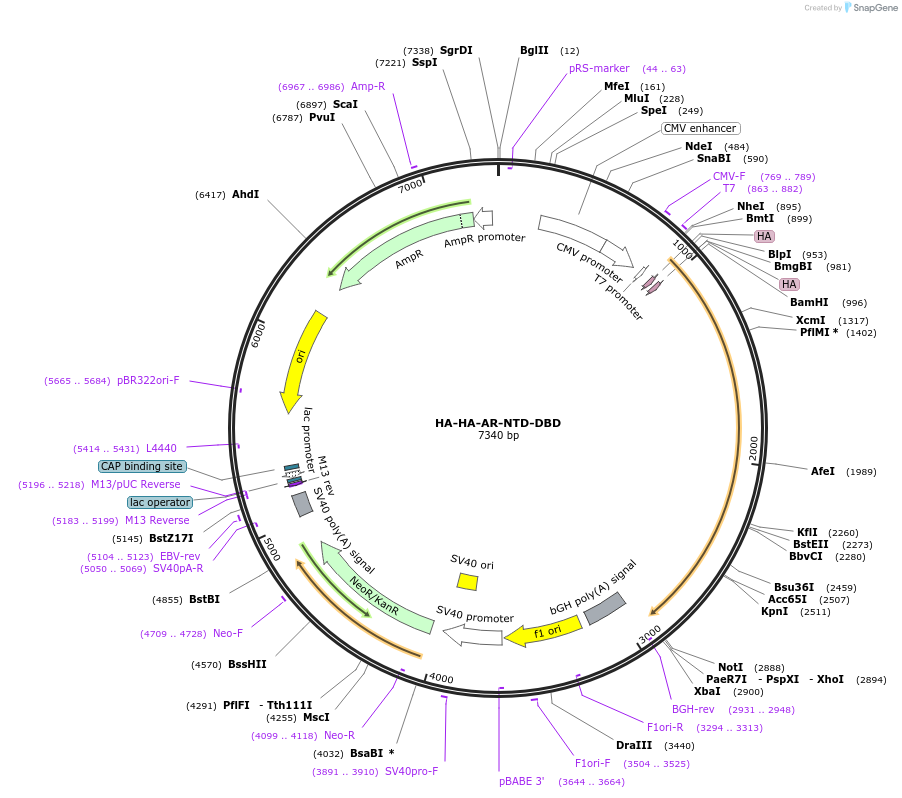

Backbone

  • Vector backbone
    pcDNA3.1(+)-kozakHAHA
  • Backbone size w/o insert (bp) 5500
  • Vector type
    Mammalian Expression, Bacterial Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    2xHA-tagged human androgen receptor trancate:N-terminal-domain and DNA-binding domain
  • Alt name
    HA-HA-AR-NTD-DBD
  • Alt name
    2xHA-AR-NTD-DBD
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1900
  • Mutation
    AR truncate
  • Entrez Gene
    AR (a.k.a. AIS, AR8, DHTR, HUMARA, HYSP1, KD, NR3C4, SBMA, SMAX1, TFM)
  • Promoter CMV
  • Tag / Fusion Protein
    • HA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site NotI (unknown if destroyed)
  • 5′ sequencing primer CMV_fwd_primer
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For cloning purpose, an "A" nucleotide was inserted right after BamHI site in the vector backbone by DNA mutagensis to change the open reading frame.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    HA-HA-AR-NTD-DBD was a gift from Steven Balk (Addgene plasmid # 171236 ; http://n2t.net/addgene:171236 ; RRID:Addgene_171236)
  • For your References section:

    Protein phosphatase 1 suppresses androgen receptor ubiquitylation and degradation. Liu X, Han W, Gulla S, Simon NI, Gao Y, Cai C, Yang H, Zhang X, Liu J, Balk SP, Chen S. Oncotarget. 2016 Jan 12;7(2):1754-64. doi: 10.18632/oncotarget.6434. 10.18632/oncotarget.6434 PubMed 26636645
