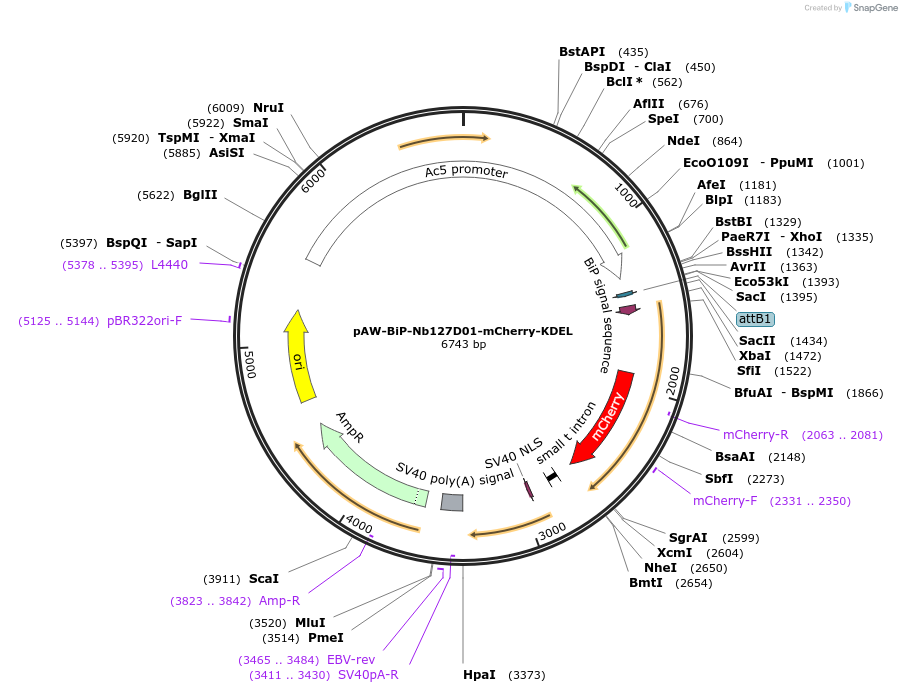

pAW-BiP-Nb127D01-mCherry-KDEL
(Plasmid #171575)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 171575 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAW
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    BiP-Nb127D01-mCherry-KDEL
  • Species
    H. sapiens (human)
  • Entrez Gene
    CXCR2 (a.k.a. CD182, CDw128b, CMKAR2, IL8R2, IL8RA, IL8RB, WHIMS2)
  • Tags / Fusion Proteins
    • BiP signal peptide (N terminal on insert)
    • mCherry-KDEL (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAW-BiP-Nb127D01-mCherry-KDEL was a gift from Norbert Perrimon & Hidde Ploegh (Addgene plasmid # 171575 ; http://n2t.net/addgene:171575 ; RRID:Addgene_171575)
  • For your References section:

    Protein visualization and manipulation in Drosophila through the use of epitope tags recognized by nanobodies. Xu J, Kim AR, Cheloha RW, Fischer FA, Li JSS, Feng Y, Stoneburner E, Binari R, Mohr SE, Zirin J, Ploegh HL, Perrimon N. Elife. 2022 Jan 25;11. pii: 74326. doi: 10.7554/eLife.74326. 10.7554/eLife.74326 PubMed 35076390
