pBID2_Gateway>QF2
(Plasmid
#173728)
-
Purpose(Empty Backbone) Drosophila QF2 expression under introduced sequence control, PhiC31 transgenesis
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 173728 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |
Backbone
-
Vector backbonepBID2
-
Backbone manufacturerEvelyne Ruchti and Brian McCabe
- Backbone size (bp) 11967
-
Vector typeInsect Expression ; Gateway Destination vector
-
Selectable markersDrosophila mini-white
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
-
MutationQF2
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

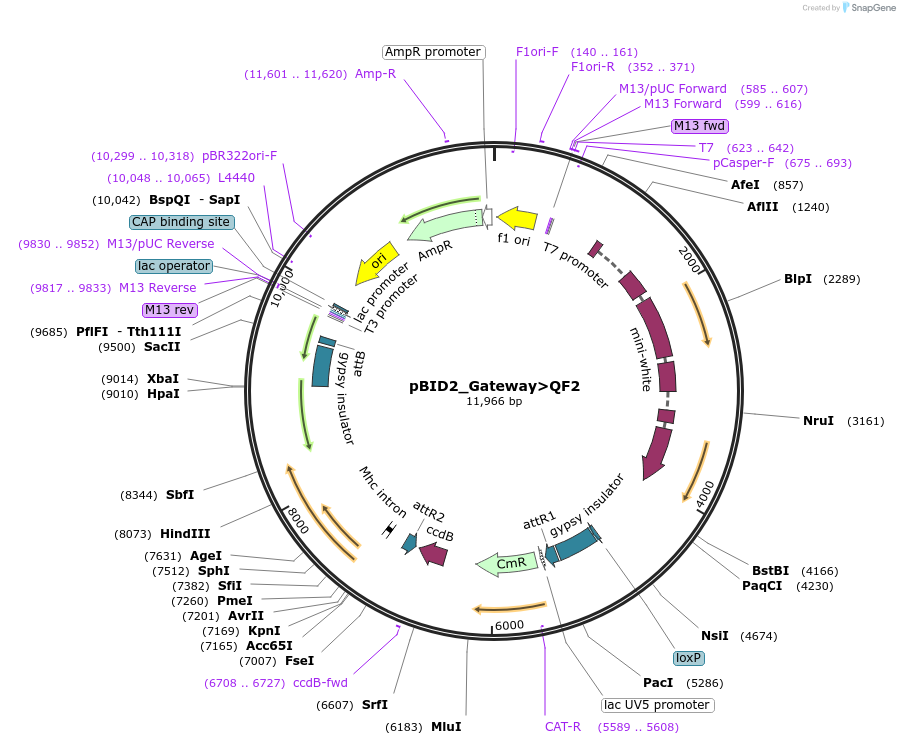

The insert begins with a Gateway attR destination cloning cassette (for insertion of gene regulatory sequences), followed by a DSCP synthetic core promoter, a Syn21 translation enhancer, a QF2 transcription factor followed by a p10 3' untranslated region. The insert is flanked by Gypsy insulator sequences to enable more homogeneous transgene expression at diverse genetic insertion sites. The backbone includes a phiC31 attB sequence for targeted transgenesis and a mini-white gene to allow transgene selection.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBID2_Gateway>QF2 was a gift from Brian McCabe (Addgene plasmid # 173728 ; http://n2t.net/addgene:173728 ; RRID:Addgene_173728)
