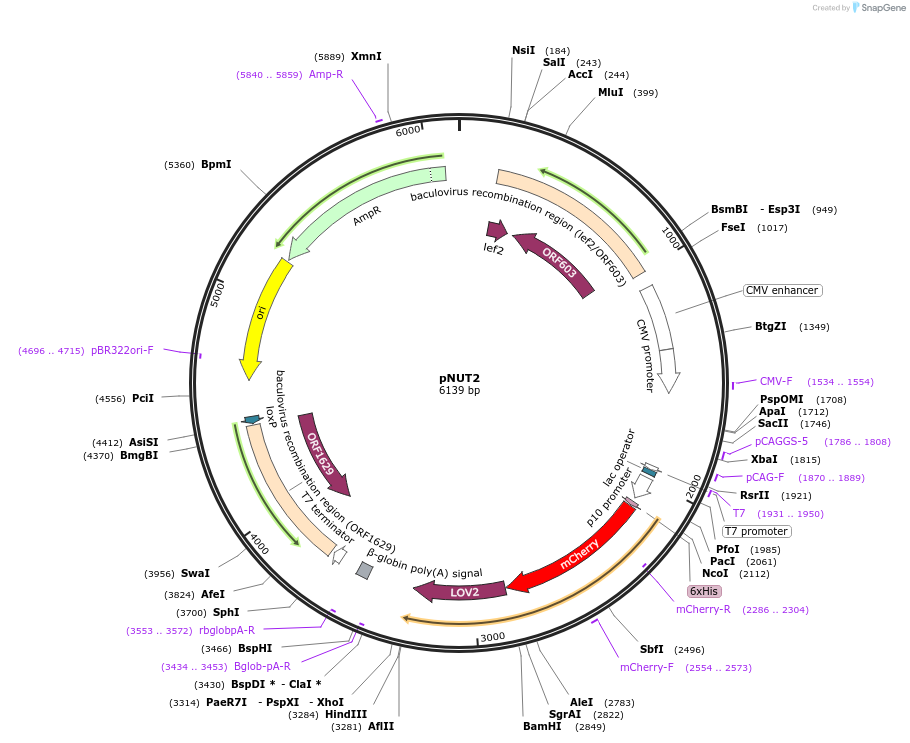

pNUT2
(Plasmid #175745)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 175745 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pTriEx
  • Total vector size (bp) 6137
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    mCherry-LOV2-NoLS (human nuclear factor-κB inducing kinase)
  • Alt name
    pNUT2
  • Species
    Synthetic
  • Insert Size (bp)
    1200
  • Tag / Fusion Protein
    • mCherry

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (destroyed during cloning)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7: TAATACGACTCACTATAGGG
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNUT2 was a gift from Yubin Zhou (Addgene plasmid # 175745 ; http://n2t.net/addgene:175745 ; RRID:Addgene_175745)
  • For your References section:

    Optical control of protein delivery and partitioning in the nucleolus. Tan P, Hong T, Cai X, Li W, Huang Y, He L, Zhou Y. Nucleic Acids Res. 2022 Mar 23. pii: 6553118. doi: 10.1093/nar/gkac191. 10.1093/nar/gkac191 PubMed 35325178
