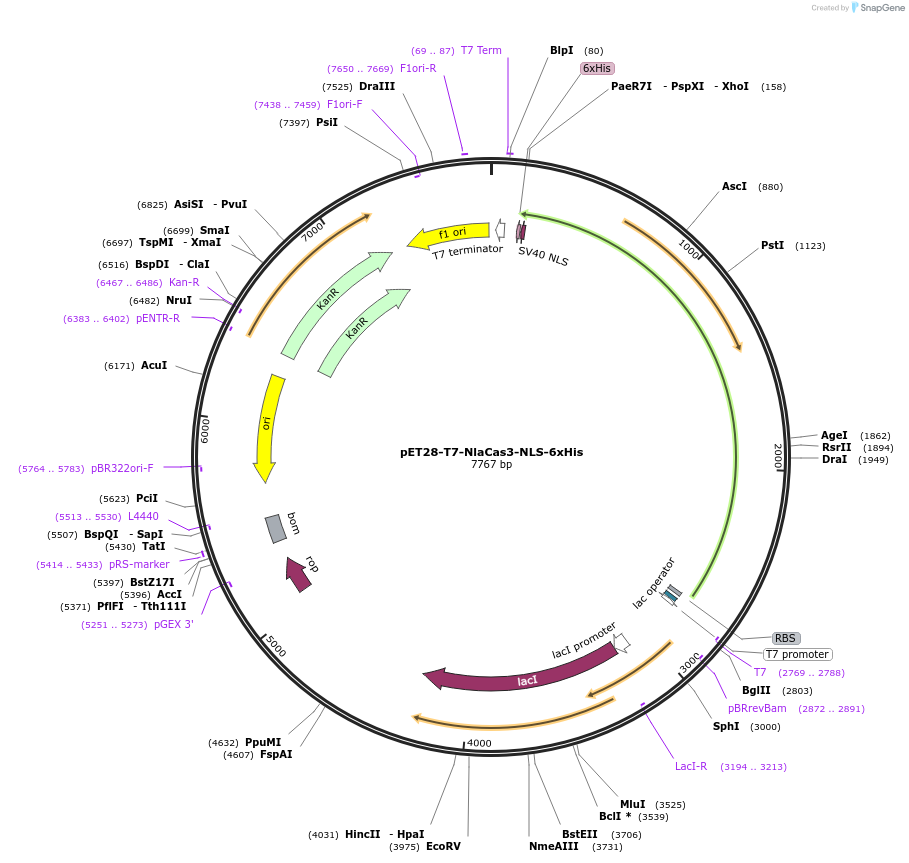

(Plasmid #180214)


This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 180214 Standard format: Plasmid sent in bacteria as agar stab 1 $85


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 5203
  • Total vector size (bp) 7771
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    Low Copy


  • Gene/Insert name
  • Alt name
  • Species
    Neisseria lactamica
  • Insert Size (bp)
  • GenBank ID
  • Promoter T7
  • Tags / Fusion Proteins
    • NLS (C terminal on insert)
    • 6xHis (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GCTAGTTATTGCTCAGCGG
  • 3′ sequencing primer TAATACGACTCACTATAGGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET28-T7-NlaCas3-NLS-6xHis was a gift from Yan Zhang (Addgene plasmid # 180214 ; ; RRID:Addgene_180214)
  • For your References section:

    Cas11 enables genome engineering in human cells with compact CRISPR-Cas3 systems. Tan R, Krueger RK, Gramelspacher MJ, Zhou X, Xiao Y, Ke A, Hou Z, Zhang Y. Mol Cell. 2022 Feb 17;82(4):852-867.e5. doi: 10.1016/j.molcel.2021.12.032. Epub 2022 Jan 19. 10.1016/j.molcel.2021.12.032 PubMed 35051351
