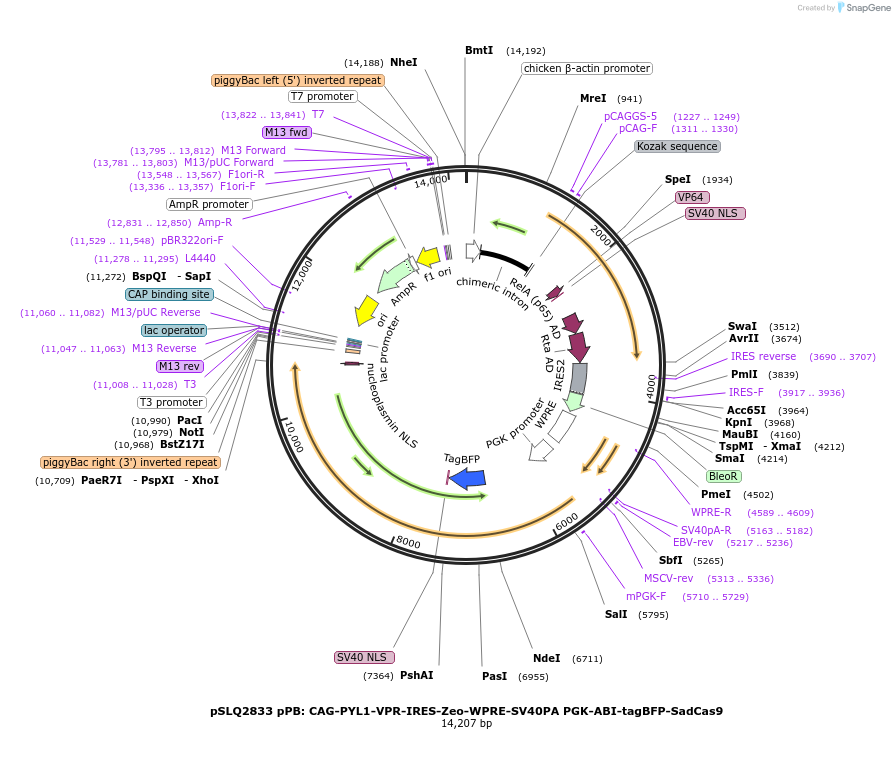

pSLQ2833 pPB: CAG-PYL1-VPR-IRES-Zeo-WPRE-SV40PA PGK-ABI-tagBFP-SadCas9
(Plasmid #84243)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 84243 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    PB
  • Backbone manufacturer
    System Biosciences
  • Total vector size (bp) 14207
  • Vector type
    Mammalian Expression, CRISPR, Synthetic Biology ; PiggyBac
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    ABI-tagBFP-Sa dCas9
  • Alt name
    nuclease dead SauCas9
  • Species
    A. thaliana (mustard weed), Synthetic; S. aureus
  • Insert Size (bp)
    5796
  • Mutation
    D10A, N580A
  • Promoter PGK
  • Tags / Fusion Proteins
    • ABI-tagBFP-Nucleoplasmin NLS (N terminal on insert)
    • SV40 NLS (C terminal on insert)

Cloning Information for Gene/Insert 1

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer gaaggtcctccggaggcc
  • 3′ sequencing primer CGGTCTGTATATCGAGGTTTATTTATTAATTTG
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    PYL1-VPR
  • Alt name
    VP64-p65-Rta
  • Species
    A. thaliana (mustard weed), Synthetic
  • Insert Size (bp)
    2145
  • Mutation
    Synonymous mutation in PYL1 to remove XhoI site
  • Promoter CAG
  • Tags / Fusion Proteins
    • PYL1 (N terminal on insert)
    • IRES-Zeocin (C terminal on backbone)

Cloning Information for Gene/Insert 2

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer tcggcttctggcgtgtga
  • 3′ sequencing primer gacggcaatatggtggaaaataac
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    The Sa dCas9 gene was a gift from Feng Zhang (MIT). The ABI and PYL1 domains were gifts from Jerry Crabtree (Stanford)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSLQ2833 pPB: CAG-PYL1-VPR-IRES-Zeo-WPRE-SV40PA PGK-ABI-tagBFP-SadCas9 was a gift from Stanley Qi (Addgene plasmid # 84243 ; http://n2t.net/addgene:84243 ; RRID:Addgene_84243)
  • For your References section:

    Complex transcriptional modulation with orthogonal and inducible dCas9 regulators. Gao Y, Xiong X, Wong S, Charles EJ, Lim WA, Qi LS. Nat Methods. 2016 Oct 24. doi: 10.1038/nmeth.4042. 10.1038/nmeth.4042 PubMed 27776111
