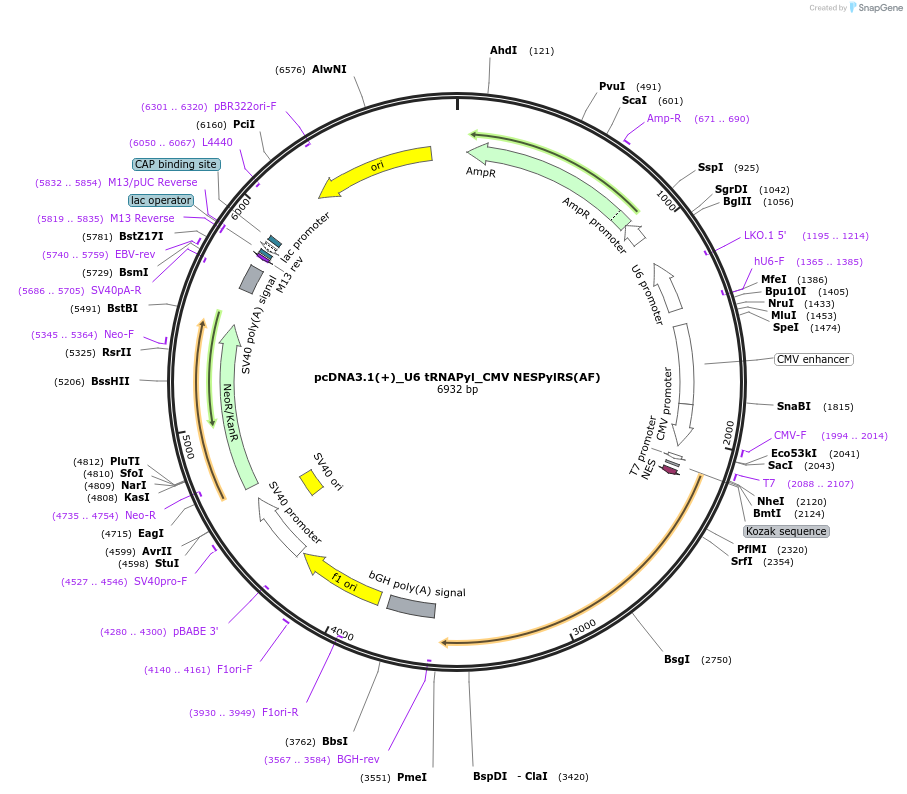

pcDNA3.1(+)_U6 tRNAPyl_CMV NESPylRS(AF)
(Plasmid #182287)


Item Catalog # Description Quantity Price (USD)
Plasmid 182287 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Vector type
    Mammalian Expression
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    codon-optimized Y306A/Y384F (AF) double mutant of Methanosarcina mazei-derived pyrrolysine (Pyl) tRNA synthetase
  • Alt name
  • Species
    Methanosarcina mazei
  • Mutation
    Y306A/Y384F (AF) double mutant of Methanosarcina mazei-derived pyrrolysine (Pyl) tRNA synthetase
  • Promoter CMV
  • Tag / Fusion Protein
    • nuclear export signal (NES) (N terminal on insert)

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
  • Alt name
  • Species
    Methanosarcina mazei
  • Promoter U6

Cloning Information for Gene/Insert 2

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    The codon-optimized gene of PylRS(AF) was custom synthesized by GeneScript. The U6-tRNA cassette was also synthetized by GeneScript.
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1(+)_U6 tRNAPyl_CMV NESPylRS(AF) was a gift from Ivana Nikić-Spiegel (Addgene plasmid # 182287 ; ; RRID:Addgene_182287)
  • For your References section:

    Minimal genetically encoded tags for fluorescent protein labeling in living neurons. Arsic A, Hagemann C, Stajkovic N, Schubert T, Nikic-Spiegel I. Nat Commun. 2022 Jan 14;13(1):314. doi: 10.1038/s41467-022-27956-y. 10.1038/s41467-022-27956-y PubMed 35031604
