pcDNA3-NP-V5-B/BRISBANE/60/2008
(Plasmid #187923)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 187923 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

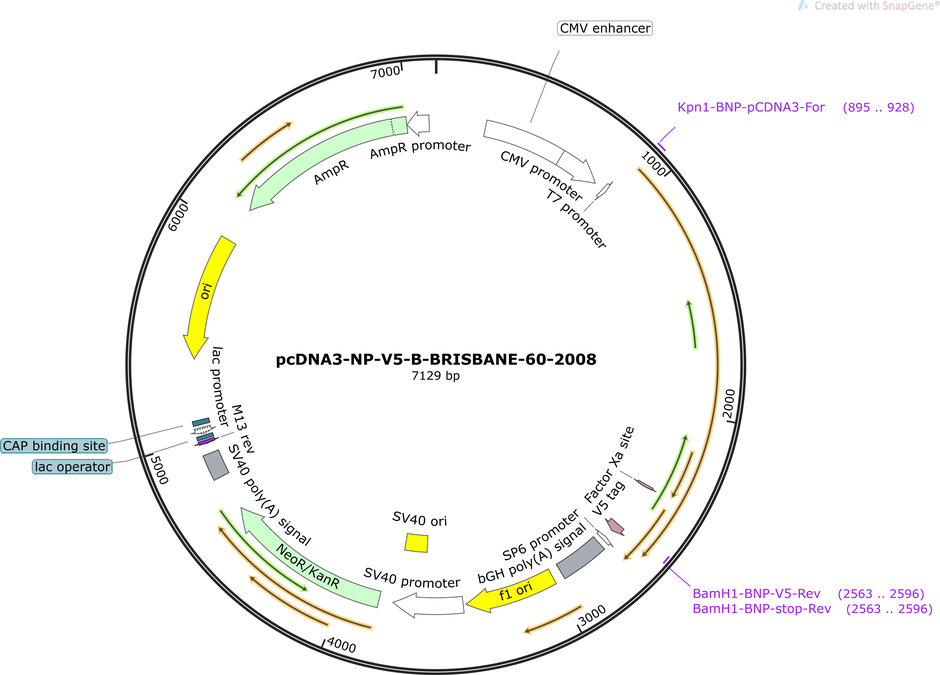

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5392
  • Total vector size (bp) 7129
  • Modifications to backbone
    C terminal V5 tag following Gly-Gly-Ser-Gly linker
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Streak an ampicillin agar plate from the frozen glycerol stock. Grow bacterial culture from a single colony grown on the plate.
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Influenza B Nucleoprotein
  • Alt name
    BNP
  • Insert Size (bp)
    1737
  • Promoter CMV Promoter
  • Tag / Fusion Protein
    • V5 (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Kpn1 (not destroyed)
  • 3′ cloning site BamH1 (not destroyed)
  • 5′ sequencing primer CMV Forward
  • 3′ sequencing primer BGH Reverse
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-NP-V5-B/BRISBANE/60/2008 was a gift from Arindam Mondal (Addgene plasmid # 187923 ; http://n2t.net/addgene:187923 ; RRID:Addgene_187923)
  • For your References section:

    A Comprehensive Roadmap Towards the Generation of an Influenza B Reporter Assay Using a Single DNA Polymerase-Based Cloning of the Reporter RNA Construct. Kedia N, Banerjee S, Mondal A. Front Microbiol. 2022 May 25;13:868367. doi: 10.3389/fmicb.2022.868367. eCollection 2022. 10.3389/fmicb.2022.868367 PubMed 35694292
