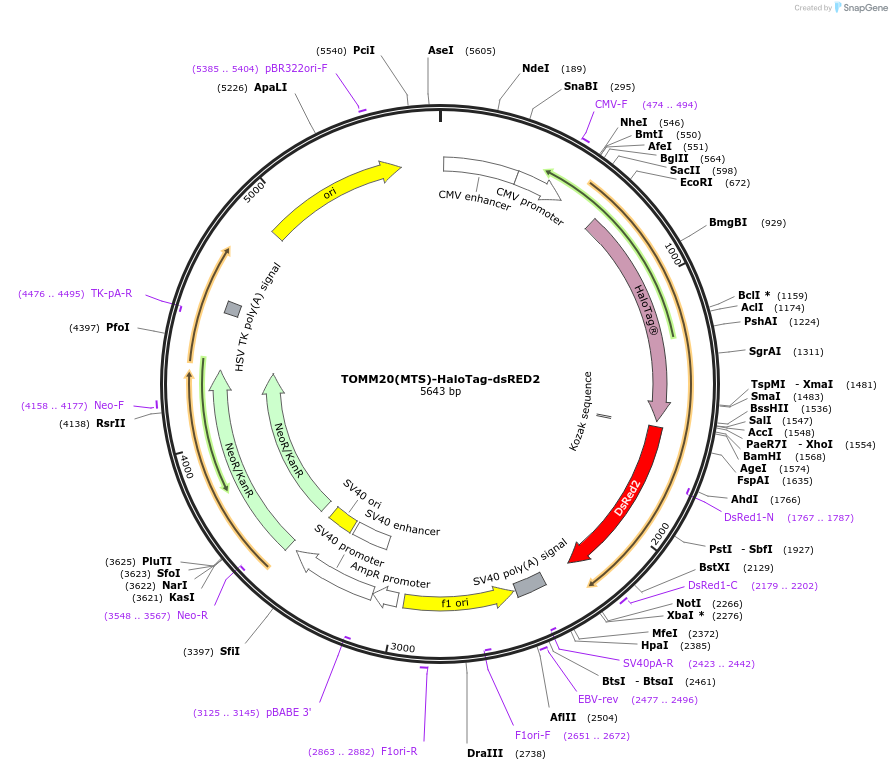

TOMM20(MTS)-HaloTag-dsRED2
(Plasmid #188662)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 188662 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    DsRed2-N1
  • Backbone manufacturer
    Michael Davidson, Addgene plasmid #54493
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Tomm20 MTS
  • Insert Size (bp)
    102
  • Promoter CMV
  • Tags / Fusion Proteins
    • Halo
    • DsRed2

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    TOMM20(MTS)-HaloTag-dsRED2 was a gift from Thomas Schwarz (Addgene plasmid # 188662 ; http://n2t.net/addgene:188662 ; RRID:Addgene_188662)

  • For your References section:

    Energy stress activates AMPK to arrest mitochondria via phosphorylation of TRAK1. Falk JE, Henke T, Gowrisankaran S, Wanderoy S, Basu H, Greally S, Steen J, Schwarz TL. J Cell Biol. 2026 Apr 6;225(4):e202501023. doi: 10.1083/jcb.202501023. Epub 2026 Jan 30. 10.1083/jcb.202501023 PubMed 41615403
