EB3-mNeonGreen
(Plasmid
#191761)
-
PurposeExpression of mNeonGreen fused to EB3
-
Depositing Lab
-
Depositing OrganizationInstitut fuer Molekulare Biotechnologie (IMBA)
Located in Austria -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 191761 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 191761-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 191761-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepeGFP-N1
- Backbone size w/o insert (bp) 3886
- Total vector size (bp) 5548
-
Vector typeMammalian Expression, Bacterial Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameEB3-mNeonGreen
-
Alt nameMAPRE3
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1563
-
Entrez GeneMAPRE3 (a.k.a. EB3, EBF3, EBF3-S, RP3)
- Promoter CMV
-
Tag
/ Fusion Protein
- mNeonGreen (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (unknown if destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer TACGGTGGGAGGTCTAT
- 3′ sequencing primer TCTACAAATGTGGTATGG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 191761-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 191761-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
EB3-mNeonGreen was a gift from Daniel Gerlich (Addgene plasmid # 191761 ; http://n2t.net/addgene:191761 ; RRID:Addgene_191761) -
For your References section:
A mitotic chromatin phase transition prevents perforation by microtubules. Schneider MWG, Gibson BA, Otsuka S, Spicer MFD, Petrovic M, Blaukopf C, Langer CCH, Batty P, Nagaraju T, Doolittle LK, Rosen MK, Gerlich DW. Nature. 2022 Sep;609(7925):183-190. doi: 10.1038/s41586-022-05027-y. Epub 2022 Aug 3. 10.1038/s41586-022-05027-y PubMed 35922507

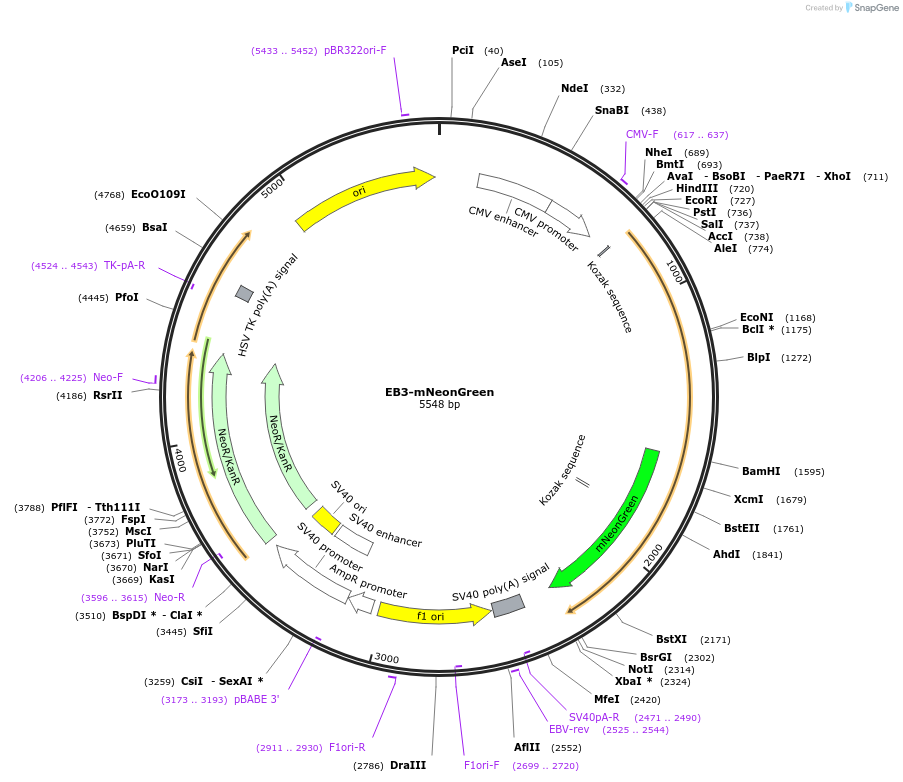

Map uploaded by the depositor.
