pBID2_LexOp>MCS
(Plasmid #194959)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 194959 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pBID2
  • Backbone manufacturer
    Evelyne Ruchti, Yuliia Smal and Brian McCabe
  • Backbone size (bp) 9668
  • Vector type
    Insect Expression
  • Selectable markers
    Drosophila mini-white

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    None
  • Mutation
    13 x LexOp sequences

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

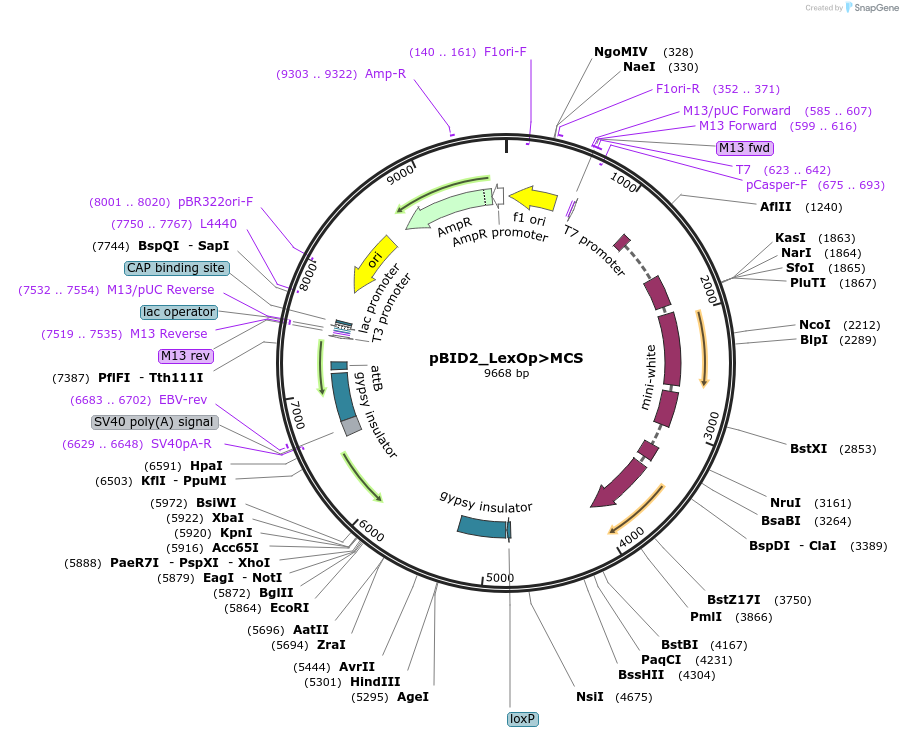

The insert begins with 13 copies of the LexA binding sequence followed by a DSCP synthetic core promoter, a Multiple Cloning Site followed by a p10 3' untranslated region. The insert is flanked by Gypsy insulator sequences to enable more homogeneous transgene expression at diverse genetic insertion sites. The backbone includes a phiC31 attB sequence for targeted transgenesis and a mini-white gene to allow transgene selection.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBID2_LexOp>MCS was a gift from Brian McCabe (Addgene plasmid # 194959 ; http://n2t.net/addgene:194959 ; RRID:Addgene_194959)
