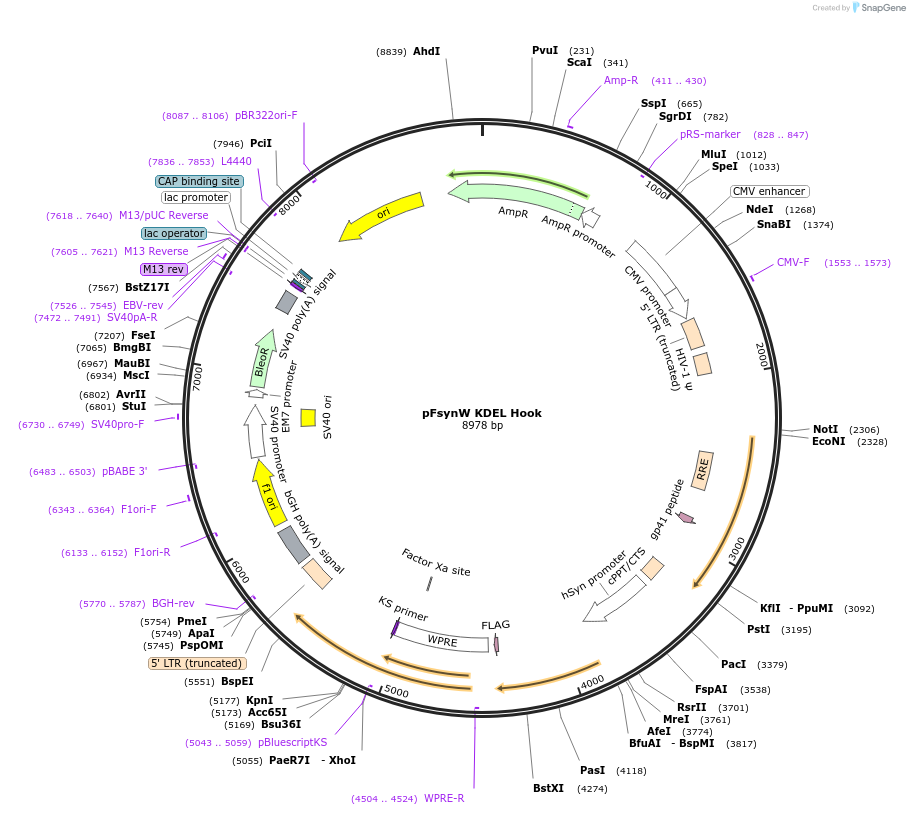

pFsynW KDEL Hook
(Plasmid #197277)


Item Catalog # Description Quantity Price (USD)
Plasmid 197277 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
    FUGW (#14883)
  • Vector type

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
  • Species
    R. norvegicus (rat)
  • Promoter hSyn (human synapsin I promoter)
  • Tag / Fusion Protein
    • FLAG (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFsynW KDEL Hook was a gift from Edwin Chapman (Addgene plasmid # 197277 ; ; RRID:Addgene_197277)
  • For your References section:

    Synaptic vesicle proteins are selectively delivered to axons in mammalian neurons. Watson ET, Pauers MM, Seibert MJ, Vevea JD, Chapman ER. Elife. 2023 Feb 2;12:e82568. doi: 10.7554/eLife.82568. 10.7554/eLife.82568 PubMed 36729040
