pOTTC2147 - pAAV nEF ConFon hChR2(H134R)-mCherry
(Plasmid #202545)

• Purpose: An INTRSECT-ready adeno-associated viral vector expressing channelrhodopsin2-mCherry fusion (Cre-On and Flp-On)
• Depositing Labs: Marisela Morales, Christopher Richie
• Publication: Barbano et al Nat Commun. 2025 Sep 26;16(1):8500. doi: 10.1038/s41467-025-63396-0.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $32 USD for plasmid.
• How this works:
  • Place a request for a quantity of 2 (0.2 mL), 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

Backbone

• Vector backbone: pAAV-nEF Con/Fon hChR2(H134R)-EYFP
• Backbone manufacturer: Karl Deisseroth (Addgene plasmid # 55644)
• Vector type: AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): NEB Stable
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: hChR2(H134R)-mCherry
• Species: Synthetic
• Insert Size (bp): 2106
• Promoter: nEF

Cloning Information

• Cloning method: Ligation Independent Cloning

Resource Information

• Supplemental Documents:

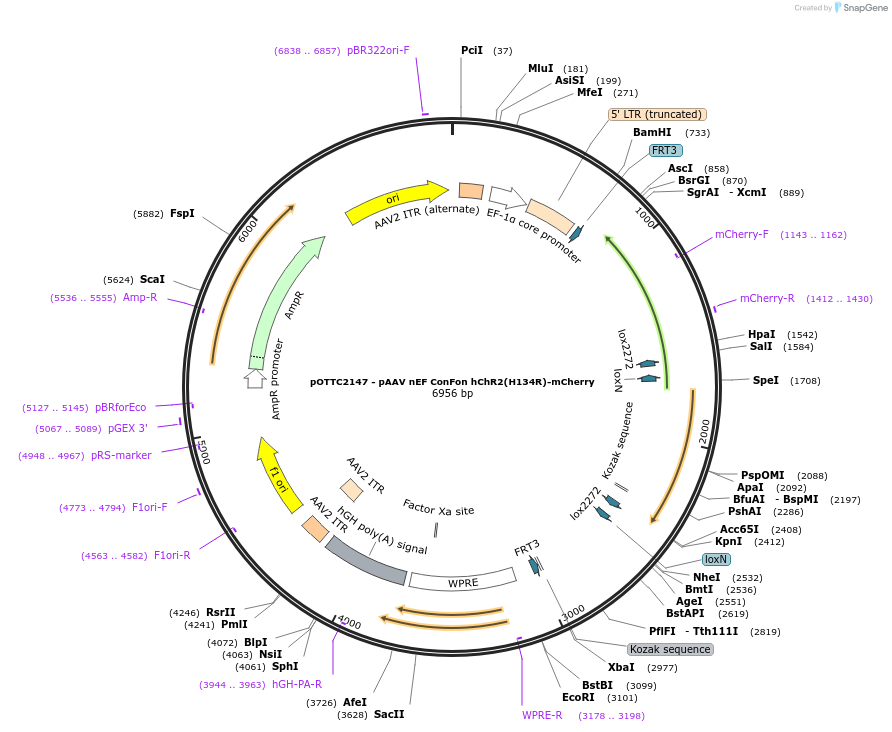

  • pOTTC2147 - pAAV nEF ConFon hChR2(H134R)-mCherry .gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
