Cav2.1 EIVA (E1707A) pcDNA3
(Plasmid
#206125)
-
Purposeexpression of rat Cav2.1 calcium channel with a E1686R mutation to enhance expression and a mutation in the P loop of Domain IV to to abolish divalent cation binding
-
Depositing Lab
-
Depositing OrganizationUniversity College London
Located in United Kingdom of Great Britain and Northern Ireland -

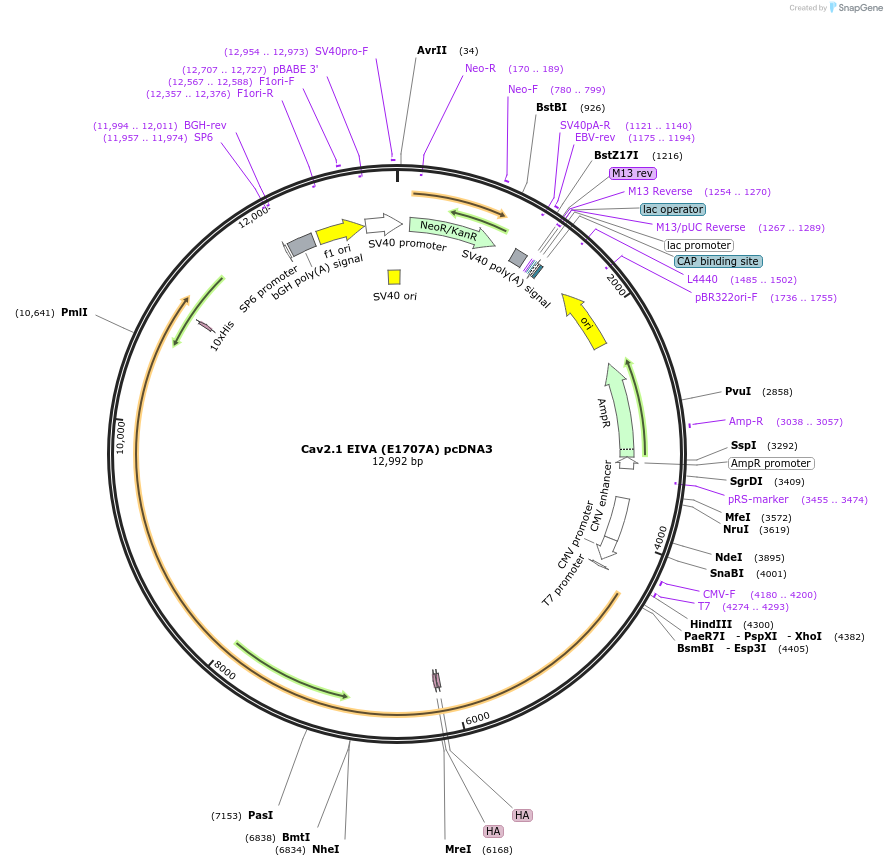

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 206125 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 206125-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 206125-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3
-
Backbone manufacturerInvitrogen Life Technologies
- Backbone size w/o insert (bp) 5446
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namecacna1a
-
Alt nameCav2.1 alpha1A
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)7495
-
MutationE1707A
-
Entrez GeneCacna1a (a.k.a. BccA1, Cav2.1, rbA-1)
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (not destroyed)
- 3′ cloning site SpeI (not destroyed)
- 5′ sequencing primer CTGGCTAACTAGAGAACC
- 3′ sequencing primer GCATTTAGGTGACACTATAG
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byTerry P. Snutch
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 206125-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 206125-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Cav2.1 EIVA (E1707A) pcDNA3 was a gift from Annette Dolphin (Addgene plasmid # 206125 ; http://n2t.net/addgene:206125 ; RRID:Addgene_206125) -
For your References section:
Disruption of the Key Ca(2+) Binding Site in the Selectivity Filter of Neuronal Voltage-Gated Calcium Channels Inhibits Channel Trafficking. Meyer JO, Dahimene S, Page KM, Ferron L, Kadurin I, Ellaway JIJ, Zhao P, Patel T, Rothwell SW, Lin P, Pratt WS, Dolphin AC. Cell Rep. 2019 Oct 1;29(1):22-33.e5. doi: 10.1016/j.celrep.2019.08.079. 10.1016/j.celrep.2019.08.079 PubMed 31577951
