CXCR5-DuET
(Plasmid
#213222)
-
PurposeThe DuET construct encodes the named human GPCR engineered with a cleaved hemagglutinin signal peptide, a 5' FLAG and a 3' 1D4 epitope tag optimized for expression in mammalian cells and proteomics studies.
-
Depositing Lab
-
Depositing OrganizationRockefeller University
Located in United States of America -

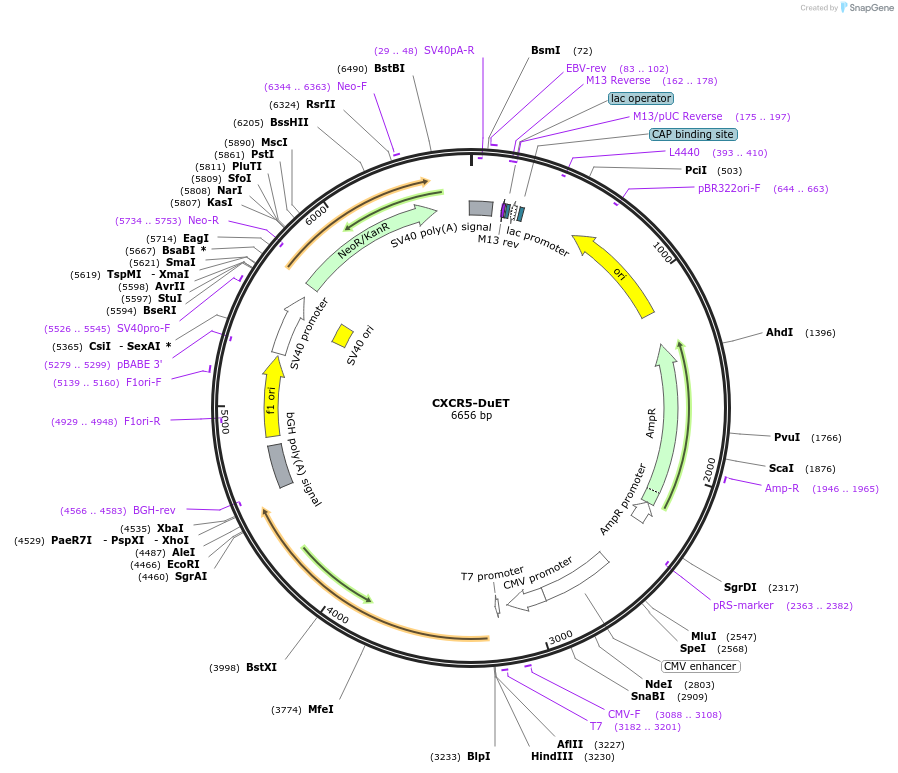

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 213222 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 213222-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 213222-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA 3.1 (+)
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCXCR5
-
Alt nameC-X-C motif chemokine receptor 5
-
Alt nameBLR1, CD185, MDR15
-
SpeciesH. sapiens (human)
-
Entrez GeneCXCR5 (a.k.a. BLR1, CD185, MDR15)
- Promoter CMV, T7
-
Tags
/ Fusion Proteins
- FLAG (N terminal on insert)
- 1D4 (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Class: A, Family: Chemokine. Ensembl ID: ENSG00000160683, Uniprot ID: P32302
DNA (Catalog # 213222-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 213222-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
CXCR5-DuET was a gift from Thomas Sakmar (Addgene plasmid # 213222 ; http://n2t.net/addgene:213222 ; RRID:Addgene_213222) -
For your References section:
Multiplexed selectivity screening of anti-GPCR antibodies. Dahl L, Kotliar IB, Bendes A, Dodig-Crnkovic T, Fromm S, Elofsson A, Uhlen M, Sakmar TP, Schwenk JM. Sci Adv. 2023 May 3;9(18):eadf9297. doi: 10.1126/sciadv.adf9297. Epub 2023 May 3. 10.1126/sciadv.adf9297 PubMed 37134173
