pPBbsr2-RaichuEV-Rac1HRasCT
(Plasmid
#214818)
-
PurposeEncoding a Förster resonance energy transfer (FRET) biosensor for Rac1 activity with cyan and yellow fluorescent protein.
-
Depositing Lab
-
Depositing OrganizationKyoto University, Graduate School of Biostudies
Located in Japan -

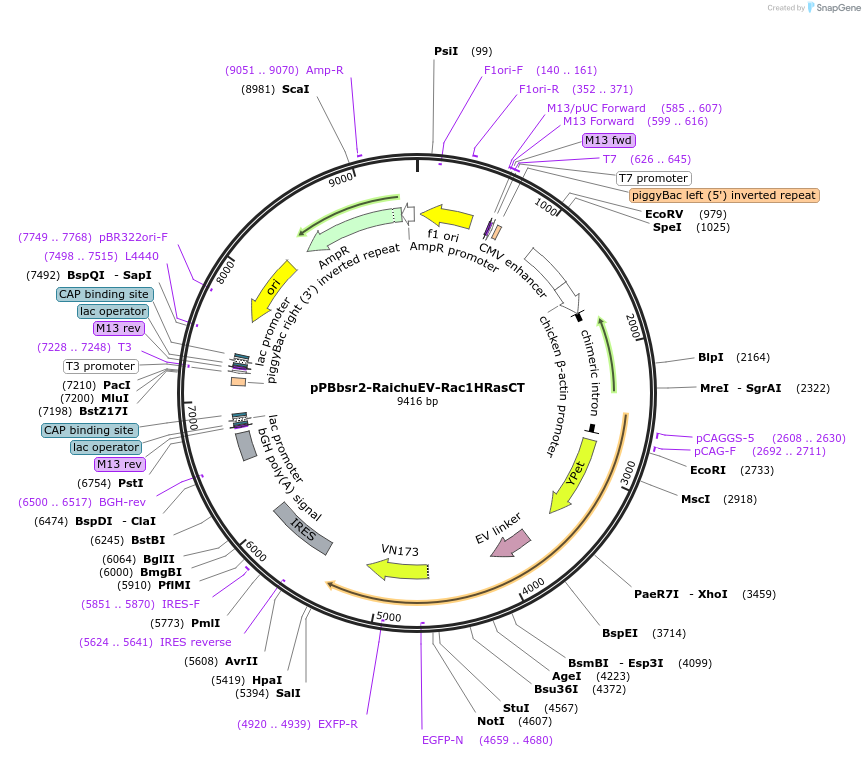

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 214818 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 214818-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 214818-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepPB
- Backbone size w/o insert (bp) 6763
- Total vector size (bp) 9408
-
Vector typeMammalian Expression
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameRaichuEV-Rac1HRasCT
-
SpeciesSynthetic
-
Insert Size (bp)2646
- Promoter CAG promoter
-
Tag
/ Fusion Protein
- HRasCAAX (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer none
- 3′ sequencing primer none
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 214818-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 214818-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPBbsr2-RaichuEV-Rac1HRasCT was a gift from Michiyuki Matsuda (Addgene plasmid # 214818 ; http://n2t.net/addgene:214818 ; RRID:Addgene_214818) -
For your References section:
Front-biased activation of Ras-Rab5-Rac1 loop coordinates collective cell migration. Jikko Y, Deguchi E, Matsuda K, Hino N, Tsukiji S, Matsuda M, Terai K. J Cell Sci. 2025 Jul 16:jcs.263779. doi: 10.1242/jcs.263779. 10.1242/jcs.263779 PubMed 40667649
