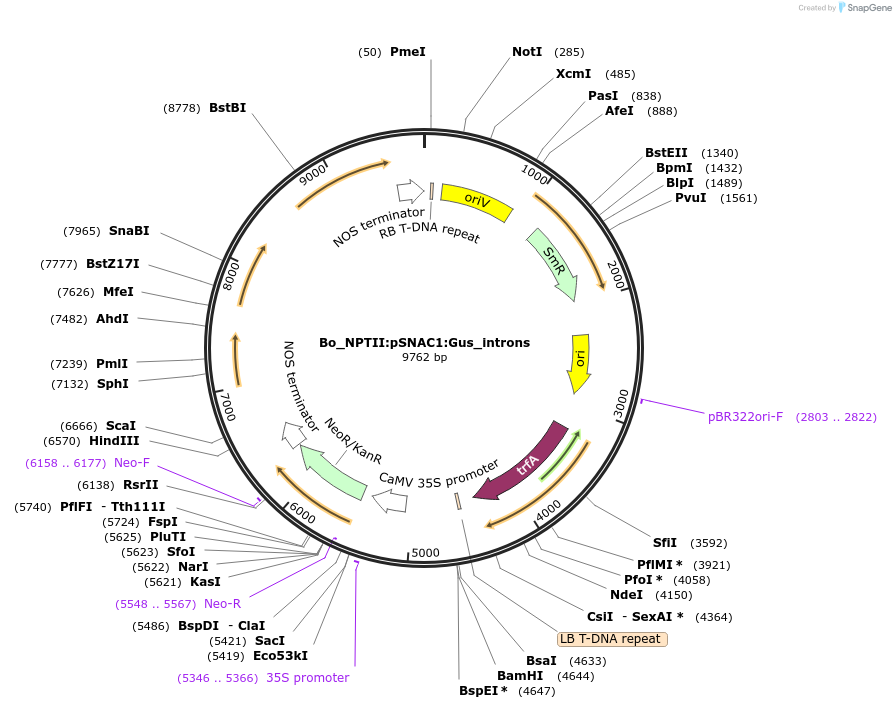

Bo_NPTII:pSNAC1:Gus_introns
(Plasmid #216215)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 216215 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAGM8031
  • Backbone manufacturer
    Sylvestre Marillonnet
  • Backbone size w/o insert (bp) 5201
  • Total vector size (bp) 9733
  • Vector type
    Plant Expression, Synthetic Biology
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Stress-responsive NAC1 transcription factor
  • Insert Size (bp)
    900
  • GenBank ID
    HORVU.MOREX.r3.5HG0524540
  • Promoter pSNAC1

Cloning Information

  • Cloning method Golden Gate
  • 5′ sequencing primer GTGGTGTAAACAAATTGACGC
  • 3′ sequencing primer GGATAAACCTTTTCACGCCC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Bo_NPTII:pSNAC1:Gus_introns was a gift from Penny Hundleby (Addgene plasmid # 216215 ; http://n2t.net/addgene:216215 ; RRID:Addgene_216215)

  • For your References section:

    A Promoter Collection for Cell-Targeted Analysis Within the Stomatal Complex. Nguyen TH, Krasauskas J, Nguyen TB, Noureen A, Smedley M, Christie JM, Harwood W, Blatt MR, Hundleby P. Plant Direct. 2025 Feb 12;9(2):e70045. doi: 10.1002/pld3.70045. eCollection 2025 Feb. 10.1002/pld3.70045 PubMed 39943924
