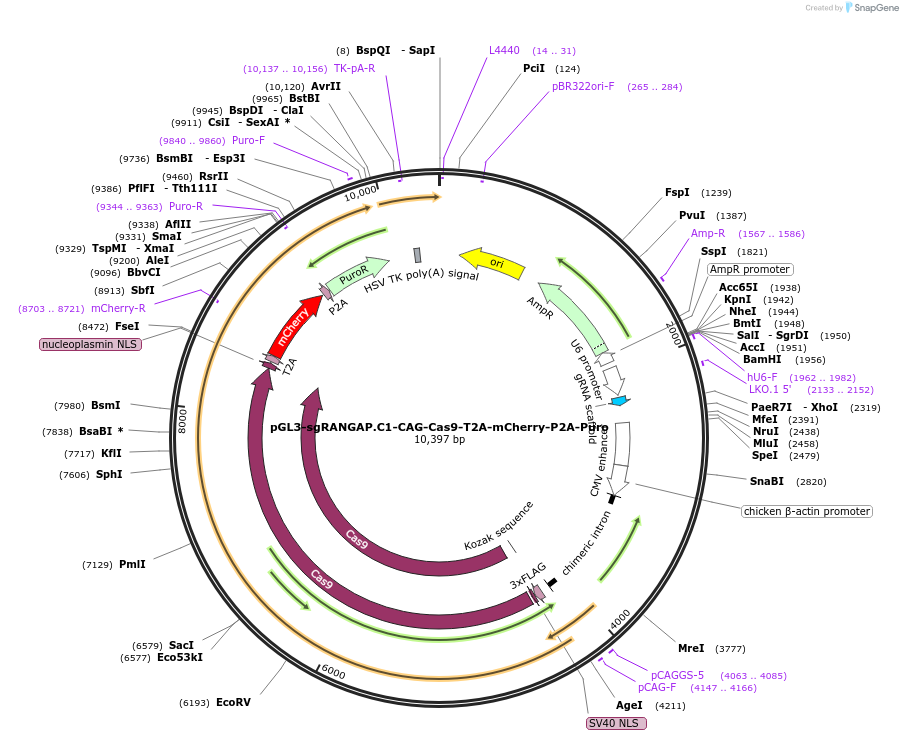

pGL3-sgRANGAP.C1-CAG-Cas9-T2A-mCherry-P2A-Puro
(Plasmid #216249)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 216249 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 216249-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 216249-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pGL3-Basic
  • Backbone manufacturer
    Promega
  • Backbone size w/o insert (bp) 2000
  • Total vector size (bp) 10389
  • Vector type
    Mammalian Expression, CRISPR ; Endogenous tagging
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Cas9 and sgRANGAP.C1
  • Alt name
    RANGAP1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    20
  • GenBank ID
    NM_001278651.2
  • Entrez Gene
    RANGAP1 (a.k.a. Fug1, RANGAP, SD)
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (unknown if destroyed)
  • 3′ cloning site BstBI (unknown if destroyed)
  • 5′ sequencing primer GACTATCATATGCTTACCGT
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGL3-sgRANGAP.C1-CAG-Cas9-T2A-mCherry-P2A-Puro was a gift from Elina Ikonen (Addgene plasmid # 216249 ; http://n2t.net/addgene:216249 ; RRID:Addgene_216249)

  • For your References section:

    HiHo-AID2: boosting homozygous knock-in efficiency enables robust generation of human auxin-inducible degron cells. Li S, Wang Y, van der Stoel M, Zhou X, Madhusudan S, Kanerva K, Nguyen VD, Eskici N, Olkkonen VM, Zhou Y, Raivio T, Ikonen E. Genome Biol. 2024 Feb 26;25(1):58. doi: 10.1186/s13059-024-03187-w. 10.1186/s13059-024-03187-w PubMed 38409044
