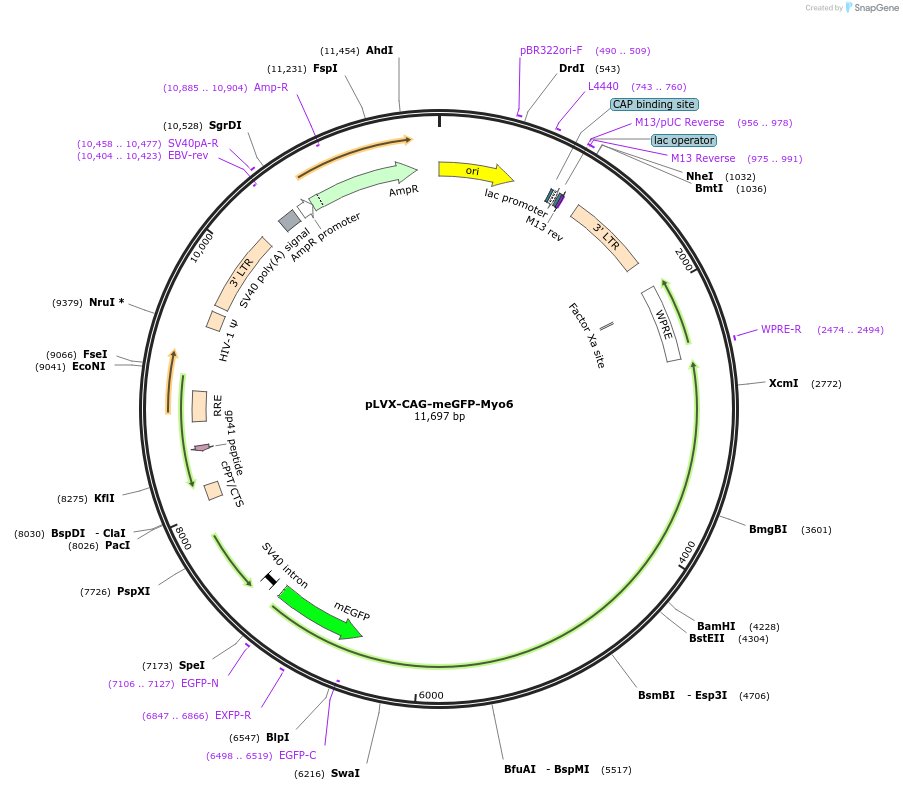

pLVX-CAG-meGFP-Myo6
(Plasmid #219575)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 219575 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pLVX
  • Backbone manufacturer
    Clonetech
  • Backbone size w/o insert (bp) 7462
  • Total vector size (bp) 11663
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Myo6
  • Entrez Gene
    MYO6 (a.k.a. DFNA22, DFNB37)
  • Promoter CAG
  • Tag / Fusion Protein
    • eGFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SpeI (not destroyed)
  • 3′ cloning site MauBI (not destroyed)
  • 5′ sequencing primer NA
  • 3′ sequencing primer NA
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    meGFP-Myo6 was amplified from Addgene plasmid 225227

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLVX-CAG-meGFP-Myo6 was a gift from Thomas Schwarz (Addgene plasmid # 219575 ; http://n2t.net/addgene:219575 ; RRID:Addgene_219575)

  • For your References section:

    Energy stress activates AMPK to arrest mitochondria via phosphorylation of TRAK1. Falk JE, Henke T, Gowrisankaran S, Wanderoy S, Basu H, Greally S, Steen J, Schwarz TL. J Cell Biol. 2026 Apr 6;225(4):e202501023. doi: 10.1083/jcb.202501023. Epub 2026 Jan 30. 10.1083/jcb.202501023 PubMed 41615403
