pEGFP-C1_N-NLS_POLH_ΔGG ubiquitin
(Plasmid #221869)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 221869 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

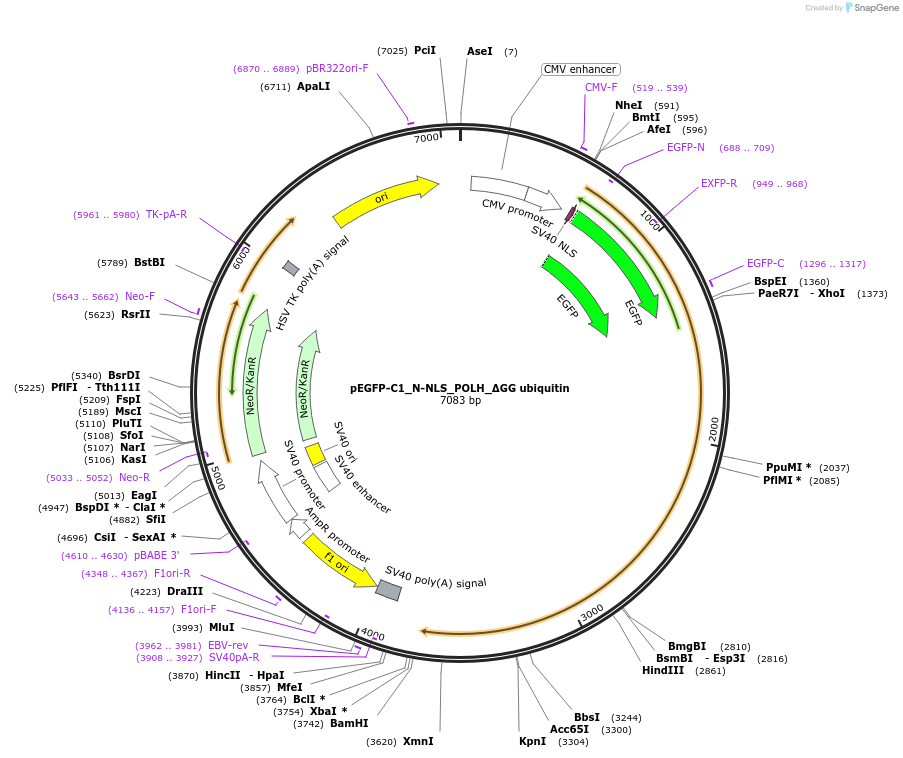

Backbone

  • Vector backbone
    pEGFP-C1_N-NLS
  • Total vector size (bp) 7083
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    POLH
  • Alt name
    DNA polymerase eta
  • Species
    H. sapiens (human)
  • Entrez Gene
    POLH (a.k.a. RAD30, RAD30A, XP-V, XPV)
  • Promoter CMV
  • Tags / Fusion Proteins
    • NLS-EGFP (N terminal on backbone)
    • ΔGG ubiquitin (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CATGGTCCTGCTGGAGTTCGTG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is a variant of pEGFP-C1_N-NLS_WT POLH (Addgene #221868) with ΔGG ubiquitin fused to the C-terminus of POLH.

Please visit https://doi.org/10.1101/2024.10.12.618026 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFP-C1_N-NLS_POLH_ΔGG ubiquitin was a gift from Roger Woodgate (Addgene plasmid # 221869 ; http://n2t.net/addgene:221869 ; RRID:Addgene_221869)

  • For your References section:

    Human DNA polymerase eta is regulated by mutually exclusive mono-ubiquitination and mono-NEDDylation. Moreno NC, Korchak EJ, Latancia MT, D'Orlando DA, Adegbenro T, Barnes RP, Bezsonova I, Woodgate R, Ashton NW. Nucleic Acids Res. 2026 Feb 5;54(4):gkag098. doi: 10.1093/nar/gkag098. 10.1093/nar/gkag098 PubMed 41693564
